Preparative liquid chromatography column PC06 series

mediumstainless steel

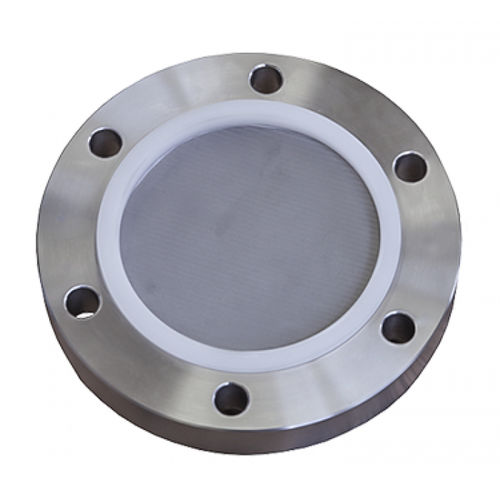

Medium and low-pressure prep chromatography columns ECOM SEPARCHROM PC 06 are made of stainless steel (AISI 316), they are unfilled, with fixed flanges on input and output, equipped with liquid input and output. Flanges inserts allow frits exchange (stainless steel mesh of 5 µm pore size, 5 mm thickness). Frits are connected with the system for the distribution of liquid flow. Materials: Stainless steel in contact with the mobile phase (AISI 316, DIN 1.4401), AISI 316L (DIN 1.4404) on request. Other parts are made of stainless steel AISI 304 (DIN 1.4301) or similar, and sealing is made of UHMWPE. COLUMN CONFIGURATION EXAMPLES Columns are custom-made, do not hesitate to ask for any other sizes within the possible ranges
