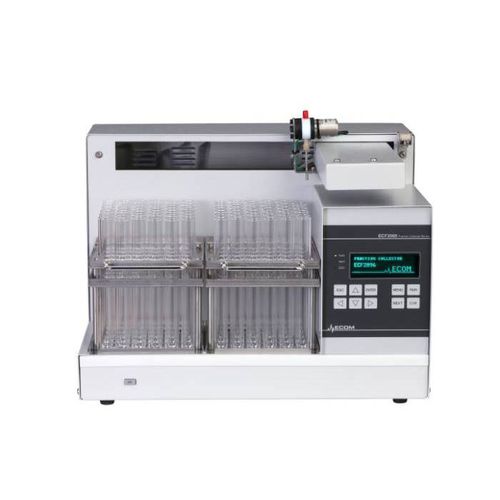

Sample collector ECF2096

Automation of flash and preparative purification. It collects fractions according to the chosen method which can be created manually using a keyboard, just as using ECOMAC software. Analog input allows fractioning directly by the signal from the detector. Two racks are easily removable and available for five tube/funnel types. A collect/waste valve is assembled. Available racks (two racks per unit): 48 tubes of 8 ml (OD 12 mm) (384 ml/rack) - by default supplied with the device, tubes with higher volumes are upon request 36 tubes of 21 ml (OD 16 mm) (756 ml/rack) 24 tubes of 40 ml (OD 20 mm) (960 ml/rack) 20 vials of 60 ml (OD 27.5 mm) (1200 ml/rack) F12A 12 funnels, 30 mm Fraction collector operating modes: Collects all Level (different up and down values) Slope (different up and down values) Using digital inputs (next, collect, waste) Time shift of all collection functions Any if it is collected by SW The main features and advantages of the fraction collector: Unit simplicity Easy programming of fraction collection Possibility to connect an electronically controlled valve for special flow functions Display information on the running process Manual unit control from the keyboard Compact size fits most fume hoods
