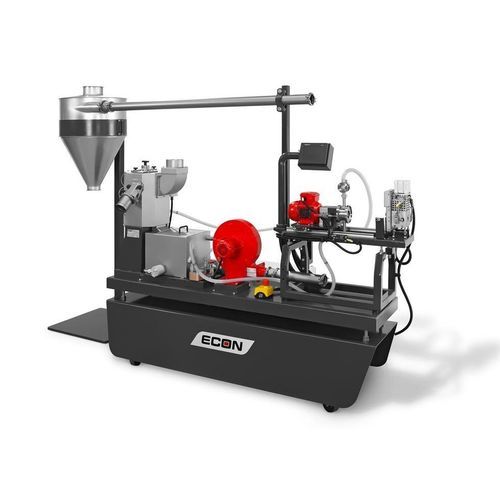

Air-cooled pelletizer E series

underwaterdryfor wood

The ECON air pelletizer was especially developed for processing wood and natural fiber compounds (such as WPC). Because water is used to cool and convey the pellets, processing wood-plastic compounds in an underwater pelletizing system requires a substantial amount of drying. Common drying methods are often unable to attain satisfactory levels of residual humidity. The air pelletizer was designed to use air to cool and convey the pellets and thus eliminate any need to dry the pellets. At the same time, the system benefits from the thermal insulation, resulting in a uniform cut and easy conveying of the pellets from the "cool" cutting surface, without generating chains or agglomerates. Among natural fiber compounds, the ECON air pelletizer is also well suited for processing PVC, which has a low inner specific heat, therefore requiring only minimal cooling. The air pelletizer can also be combined with the ECON underwater pelletizing system, resulting in the water & air pelletizer EWA. Especially for laboratory applications this combination provides benefits in terms of flexibility and space requirements. With only a few modifications, one system can be used for both underwater and air pelletizing. Within just a few minutes the machine can be converted from air to underwater pelletizing and vice versa. - all advantages of the thermal insulation technology - highest flexibility - two different applications combined in one machine Function The air pelletizing system consists of a pelletizing unit, a conveyor fan with noise reduction cover, piping and a cyclone and an electrical control system. The melt is directed to the pelletizing head with the die plate installed, and the emerging melt strands are pelletized. The pellets are moved by an air stream that is produced by the conveyor fan. By the air stream the pellets are dried and are discharged through the cyclone. Types and Throughput ECON Type | Throughput Water* | Throughput Air* EWA 10 | 1 - 30 kg/h | 1 - 30 kg/h EWA 50 | 2 - 150 kg/h | 20 - 100 kg/h EWA 150 | 100 - 450 kg/h | 100 - 300 kg/h EWA 400 | 300 - 800 kg/h | 300 - 600 kg/h EWA 1000 | 700 - 1,800 kg/h | 300 - 600 kg/h EWA 1500 | 800 - 2,500 kg/h | 600 - 1,200 kg/h EWA 3000 | 1,800 - 3,500 kg/h | 1,200 - 3,000 kg/h ECON Type | Throughput* ELG 10 | 1 - 30 kg/h ELG 50 | 20 - 100 kg/h ELG 150 | 100 - 300 kg/h ELG 400 | 300 - 600 kg/h ELG 1500 | 600 - 1,200 kg/h ELG 3000 | 1,200 - 3,000 kg/h *The above-mentioned output ranges are reference values for standard pellets. Throughputs always depend on material properties and pellet size and therefore, they may deviate on an individual basis. Normally, for micro pellets the throughputs are lower. Key Features / Technical Specifications - Developed for wood and natural fiber compounds (e.g., WPC) - Air cooling and conveying eliminates need for pellet drying - Thermal insulation for uniform cut and easy conveying - Suitable for PVC processing (minimal cooling required) - Convertible between air and underwater pelletizing (EWA) - Pelletizing unit, conveyor fan with noise reduction, piping, cyclone, and electrical control system - Multiple types/models with throughput from 1 kg/h up to 3,500 kg/h depending on model
