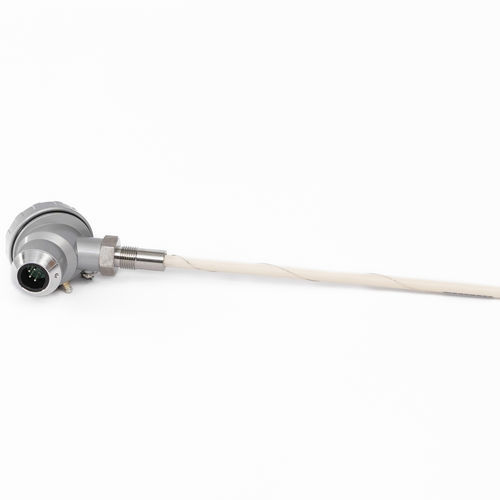

Concentration probe CarboProbe DS

oxygenthermocouplelaboratory

The CarboProbe DS is a laboratory oxygen probe, suitable for measurement of oxygen concentration over the range from pure oxygen down to 10-24 atmospheres at temperatures from 700°C to 1700°C. It consists of a ZRO2 oxygen sensor with an internal thermocouple. All wiring and electrodes are platinum, for the best possible corrosion resistance. •Supplied with a vacuum sealed, stainless steel M16 extension tube •This extension tube can easily be fitted into an O-ring seal Accurate enough for research laboratory use, but low in cost •Read the probes measurement with a hand-held digital meter, for a quick and simple reading. •Student laboratory experiments – demonstration of the Nernst equation Combustion and pyrolysis research •Measurement of fuel/air ratios in combustion •Oxygen fugacity measurements in geological specimens TECHNICAL CHARACTERISTICS Output 0 to 1200 mv Readout impedance This probe should be used with controlling, recording and indicating instruments having input impedance of 8 megohms or higher Accuracy +- 2 mV in normal operating range Response time Less than 1 second Thermocouple R, S Operating temperature From 600°C (1100°F) to 1700°C (3100°F) Mechanical shock Resists mild mechanical shock. Handle carefully Available lengths 100mm (3.9”), 200mm (7.9”), 300mm (11.8”), 400mm (15.7”), 500mm (19.7”), 600mm (23.6”), 700mm (27.5”), 800mm (31.5”), 900mm (35.4”), 1000mm (39.4), 1100mm (43.3”) Reference air Uncontaminated dry air at maximum rate of 1-6 l/h External diameter 8.5 mm / 15 mm
