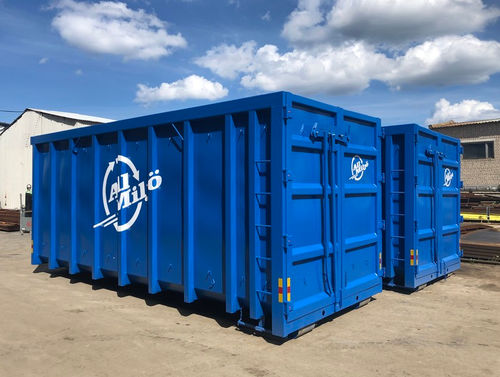

Steel waste container HLR series

crane-liftfor urban wastelockable

Frame according to SS3021 (UNP180), DIN30722/SFS4417 (INP180) Sides 3mm S235 (S355 is available on demand as well 4mm/5mm thickness) Bottom 5mm S235 (S355 is available on demand as well 4mm/6mm thickness) 19 bottom and 10 side profiles Side profiles 80x100x80x3 Bottom profiles 40x100x40x4 On top RHS160x80x5, back posts RHS160x80x5 Double side opening rear doors with 2, 3 or 4 hinges with grease nipple on each hinge Hook-type locking mechanism (other types of locking mechanism are available on demand) Safety lock operated from the side Ladder steps on front wall and inside Reflex decals Surface treatment: - shot blasting sa 2.5 - inside 60μm alkyd primer - outside min 120μm 2K polyurethane EN ISO 12944 C3M Options Rolling tarpaulin cover Steel flat roof Steel arched roof Steel net roof (steel grid) Steel twin-sided roof Manual light mesh cover 270 degrees opening Cable winch for operation of roof Hydraulic manual pump Hydraulic combined pump (to operate with a drill) Lifting jack Steel plates on sides for logo stickers LOGO stickers and serial numbers Ladders on sides in back
