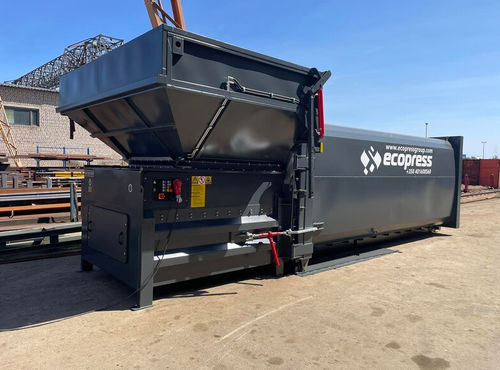

Mixed waste treatment plant ETS-45/500

ETS-45/500 is our small sized Transfer Station compactor with a capability of handling up to 150 cubic meters per hour of waste with a swept volume of 1,52 cubic meters, making this basic compactor an efficient solution in the design of small volume Refuse Transfer Stations. This reinforced stationary compactor is capable of transfer waste material quickly and efficiently into the large compaction containers with payload at least 13 tons. Compaction ram penetrates the container by 250 mm to ensure stable compaction and eliminating spill-back. The press construction may include hydraulic grab claw container attachments for quick and comfortable container changeover. The compactor is operated by control desk located at the compactor. Compaction container capacity is from 20 to 44 m³. For hooklift/roll-off tippers or sea freight containers or container trailers Container 80 and 100% full light Fill level, error or service requirement notification via GSM GSM - alarm systems Hardox 450 plate in bottom and ram construction Pendulous steel scraper in front of the ram Problem-free emptying supported by three-sided conical container body or floating roof Discharge door with ratchet closure, hinges on the side Cylinder mounted in rotatable eyelets Maintenance friendly electrical switch cabinet and hydraulic unit are easily accessible from the side. Electronic safety controller is easily expandable for many additional functions Sandblasted and painted as per EN ISO 12944 C3M Pre-chamber compaction system Several operating variants including a fully automatic version Individual hopper designs Diverse hydraulic units with standard power classes up to 75kW
