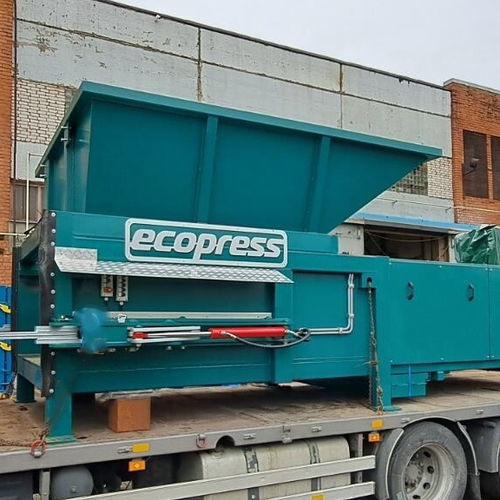

Mixed waste treatment plant ETS-60/750

ETS-60/750 is our middle sized Transfer Station compactor with a capability of handling up to 300 cubic meters per hour of waste with a swept volume of 3,14 cubic meters, making this powerful compactor an efficient solution in the design of medium volume Refuse Transfer Stations. This extremely powerful compactor is capable of transfer large amounts of waste material quickly and efficiently into the large compaction containers with payload at least 15 tons. Compaction ram penetrates the container by 400 mm to ensure maximum compaction and eliminating spill-back. The press construction includes hydraulic grab claw container attachments for quick and comfortable container changeover. The compactor is operated automatically or by operator with touch screen monitor or buttons from the control room, an additional control desk is located at the compactor. Compaction container capacity is from 20 to 44 m³. Pre-chamber compaction system Several operating variants including a fully automatic version Individual hopper designs Diverse hydraulic units with standard power classes up to 75kW Light barriers as start device and / or as overfill prevention device Several variants of remote control as cable, wireless, from desktop Traversing system for the compaction containers Container weighing system Automatic or manual closure gate (guillotine) Hydraulic Locking mechanism for container positioning to press Attached tipping Hopper up to 60m3 for loading waste in to press Feeding conveyer
