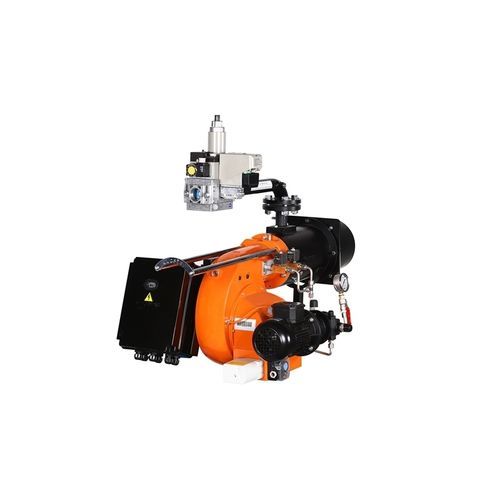

Pilot burner ECO 45 K L C 2
monobloclight fuel oilnatural gas

pilot burner
pilot burner
Add to favorites
Compare this product


Characteristics

Type
monobloc, pilot
Power source
gas, natural gas, light fuel oil
Firing
direct fired
Applications
flange
Power

Max.: 4,070 kW

Min.: 200 kW

Description

Two-stage operation with natural gas and light oil, Operating at 21 mbar gas pressure up to model ECO 55 K (L) C 2, Wide thermal capacity adjustment range according to the heat requirement, Direct or pilot ignition option (pilot ignition is optional for certain models), Flame control with ignition and photocell, Uniform fuel mixture with a unique combustion head with high combustion efficiency, Combustion air control with air pressurestat, Operation at low noise levels with its aluminum alloy, light body, Minimum friction losses on body and combustion nozzle, Combustion air flow adjustment with internal fan flap, Easy access to all parts without dismounting the burner from the boiler, High pressure mechanical atomization at nozzle, Specially-designed, compact pre-heater, safety, operation and limiting thermostat Sliding flange for connection to different boiler types, Compact design requiring minimal maintenance.
