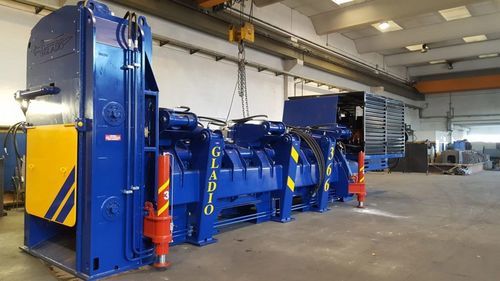

Scrap metal baling press GLADIO series

vertical chamberhigh-capacityhigh-power

Overview
Transportable and mobile shear baler designed for demolition and scrap processing. The GLADIO series by Ecotecnica Europe combines a high-capacity shear unit with a compression box to cut and bale large metal pieces on-site, reducing transport volume and facilitating material handling.

Shear

• GLADIO 255 — Shear force: 500 ton; Shear cylinders: 2; Vertical hold-down force: 60 ton
• GLADIO 366 — Shear force: 600 ton; Shear cylinders: 2; Vertical hold-down force: 60 ton

Compression box

• Machine length (working): GLADIO 255 = 13,000 mm; GLADIO 366 = 15,000 mm
• Machine length (transport): GLADIO 255 = 10,500 mm; GLADIO 366 = 11,500 mm
• Box length: GLADIO 255 = 5,250 mm; GLADIO 366 = 6,000 mm
• Machine width: 2,500 mm (both models)
• Compression box width (covers open): 1,730 mm (both models)
• Bale dimensions: 850 × 650 mm (both models)
• Height (transport): 4,200 mm (both models)
• Number of covers: 2 (both models); Cylinders per cover: 2
• Lateral compression force (wings): GLADIO 255 = 360 ton; GLADIO 366 = 420 ton
• Longitudinal compression force: 150 ton (both models)
• Total weight: GLADIO 255 = 50,000 kg; GLADIO 366 = 53,000 kg

Technical specifications

• Product: GLADIO shear baler (transportable and mobile)
• Brand: Ecotecnica Europe
• Models: GLADIO 255, GLADIO 366
• Shear force: 500 ton (GLADIO 255) / 600 ton (GLADIO 366)
• Shear cylinders: 2 per machine
• Vertical hold-down force: 60 ton
• Bale size: 850 × 650 mm
• Transport height: 4,200 mm
• Designed for on-site demolition and scrap processing to reduce transport volume and simplify logistics
