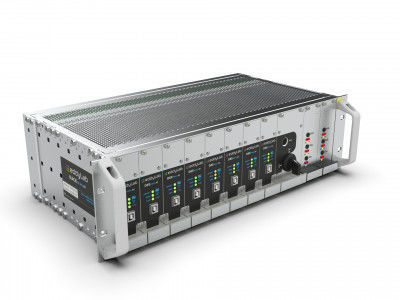

19" rack RACK8E-AC-3U

The Rack is designed for use with DEEneo signal conditioners, which are developed for operating inductive LVDT sensors (full bridge). The electronics supply the sensor and convert the sensor signal into a standardized, analogue output signal with the help of a microcontroller. The linearization of the sensor signal enables maximum precision. Installation and commissioning are effortless thanks to the USB connection and configuration software. For example, long cable lengths or installation tolerances can be compensated for in seconds, and user-specific measuring ranges can be easily set.

DEEneo-3U was designed for installation in 19" racks with a seismic-proof design. This allows the system to be qualified for K3 environment. These racks can accommodate up to 8 DEEneo-3U signal conditioners as a cost-effective and space-saving solution. To increase reliability, the racks have their own redundant power supply, either 24 VDC or 230 VAC. The cable connections for power, sensor and signals are located on an easily accessible backplane and are designed with spring-loaded terminals for maximum reliability. Desktop versions are available.

Key Features

• Designed for DEEneo-3U signal conditioners
• Supports up to 8 signal conditioners per rack
• Seismic-proof design for K3 environment qualification
• Redundant power supply: 24 VDC or 230 VAC
• Spring-loaded terminals for reliable connections
• Accessible backplane for easy cable management
• Desktop versions available

Technical Specifications / Characteristics

• Compatible with inductive LVDT sensors (full bridge)
• Microcontroller-based signal conversion and linearization
• USB connection and configuration software for easy setup
• Standardized analogue output signal
• Accommodates up to 8 DEEneo-3U modules
• Redundant power supply options: 24 VDC or 230 VAC
• Spring-loaded terminal connections
• Seismic-proof 19" rack design
