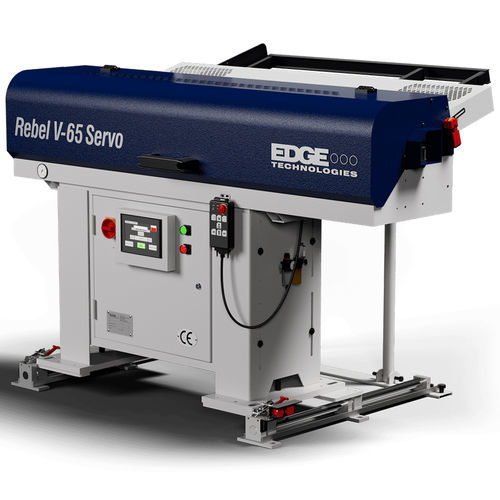

Short bar bar feeder Rebel V-65 Servo

for CNC lathesautomatic

The Rebel V-65 Servo short loader is a compact bar loading system for CNC lathes. V-65 features include a large magazine capacity, easy programming, audible alarm, axial shift, feed force, linear feed Servo drive and optional slug feed. The V-65 Servo combines advantages of auto bar loading with a small footprint and an economical price. Features: • Bar diameter capacity: 5 mm to 67 mm (.196” to 2.63”) • Bar length capacity: 48” or 60” (max. bar length determined by spindle length) • Magazine capacity is 25 linear inches • Mitsubishi PLC controller—powerful & user friendly • Easy centerline adjustment using sliding scale • Standard x-axis axial shift device • Soft load material presentation • Remote control pendant • Fixed piece feed-out and sub-spindle mode • Lathe spindle speed can be maximized • Material length can be uniform or random • Material can be round, hexagonal or shaped • (3) Pushers included: 6 mm, 12 mm, 19 mm
