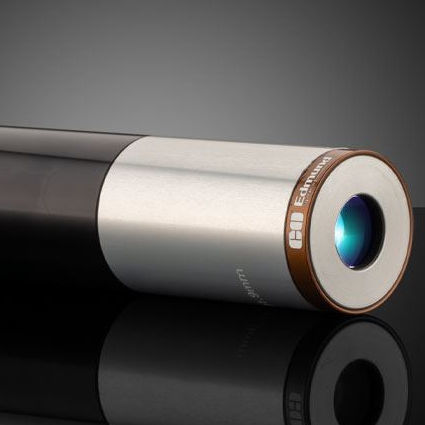

Zoom objective lens #88-3 series

machine vision

TECHSPEC® Cf Objectives are designed to reduce the overall weight and size of an imaging system while maintaining optical performance. While traditional objective systems typically require long tube lengths and tube lenses, TECHSPEC® Cf Objectives optimize each objective to allow for shorter tube lengths. Standardized 30mm outer diameters and C-mount threading ease integration into system assemblies. Magnification can be easily increased by adding spacers to increase the tube length. Each lens has a broadband anti-reflection coating to provide even and maximized light transmission in the visible spectrum. TECHSPEC® Cf Objectives are ideal for a variety of biomedical or machine vision applications including microscopy, flow cytometry, pharmaceutical inspection, and assembly line or fault inspection. Zemax files are available upon request. Lightweight Design with Compact Form Factor Configurable Magnification Using Spacers Optimized For Long Working Distances Common Specifications Manufacturer: Edmund Optics® Note: Magnification can be increased by adding tube length (see table) Coating: 425 - 675nm BBAR Wavelength Range (nm): 400 - 700 Field Number (mm): 17.6 Immersion Liquid: N/A Maximum Sensor Format: 1.1" Mount: C-Mount Operating Temperature (°C): +10 to +40
