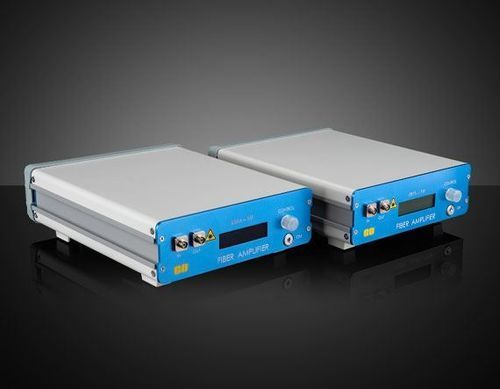

Optical amplifier #75-5 serieshigh-gainerbium-doped fiber opticfor laboratory
Add to favorites
Compare this product
Characteristics
- Type
- optical
- Other characteristics
- low-noise, with USB port, high-gain, benchtop, polarization-maintaining, erbium-doped fiber optic, ytterbium-doped, for laboratory, for optical sensors, single-mode
- Power
Min.: 0.1 W
Max.: 1,000,000 W
Description
Overview
Benchtop EDFA and YDFA fiber amplifiers are turnkey, rack-capable Erbium- (EDFA) or Ytterbium-doped (YDFA) modules designed for laboratory, R&D and production test environments. EDFA units cover 1530–1565 nm; YDFA units cover 1025–1075 nm. These amplifiers deliver high-gain, low-noise amplification with output power >100 mW, available in Single Mode (SM) or Polarization Maintaining (PM) fiber types. Local front-panel control and USB (USB 2.0) remote control enable integration into automated test systems.
Key Features
Common Specifications
Included Accessory: USB Type-A to Type-B cable. Dimensions (inches / mm): 11 x 3 x 8 in (279 x 76 x 203 mm). Weight: 2 lbs (0.91 kg). Power Supply: IEC mains connector. Computer Interface: USB 2.0 compatible (USB Type-B). Front-panel Interface: Optical encoder with knob.
Technical Specifications
Benchtop EDFA and YDFA fiber amplifiers are turnkey, rack-capable Erbium- (EDFA) or Ytterbium-doped (YDFA) modules designed for laboratory, R&D and production test environments. EDFA units cover 1530–1565 nm; YDFA units cover 1025–1075 nm. These amplifiers deliver high-gain, low-noise amplification with output power >100 mW, available in Single Mode (SM) or Polarization Maintaining (PM) fiber types. Local front-panel control and USB (USB 2.0) remote control enable integration into automated test systems.
Key Features
- Choice of Erbium-doped (EDFA) or Ytterbium-doped (YDFA) amplifier modules
- Wavelength ranges: 1530–1565 nm (EDFA) and 1025–1075 nm (YDFA)
- High gain, low-noise amplification with output >100 mW (model dependent)
- Available fiber configurations: Single Mode (SM) and Polarization Maintaining (PM)
- Local control via optical encoder and knob; remote control via USB 2.0 (Type-B)
- Compact benchtop form factor for lab racks and production stations
- Applications: DWDM, optical sensing, fiber telecommunications, R&D, automated manufacturing
Common Specifications
Included Accessory: USB Type-A to Type-B cable. Dimensions (inches / mm): 11 x 3 x 8 in (279 x 76 x 203 mm). Weight: 2 lbs (0.91 kg). Power Supply: IEC mains connector. Computer Interface: USB 2.0 compatible (USB Type-B). Front-panel Interface: Optical encoder with knob.
Technical Specifications
- Amplifier Type: Erbium-doped (EDFA) or Ytterbium-doped (YDFA)
- Wavelength Ranges: EDFA 1530–1565 nm; YDFA 1025–1075 nm
- Output Power: >100 mW (depending on model)
- Noise Performance: Low-noise amplification, optimized for C-band/L-band systems
- Fiber Options: Single Mode (SM) or Polarization Maintaining (PM)
- Control Modes: Manual front-panel (optical encoder) and digital control via USB 2.0
- Included Cable: USB Type-A to Type-B
- Power Connector: IEC mains connector
- Dimensions & Weight: 11 x 3 x 8 in (279 x 76 x 203 mm); 2 lbs (0.91 kg)
- Typical Applications: DWDM, optical sensing, fiber telecommunications, research & development, automated production
