Fixed-focus camera objective Cw Series

machine visionfor industrial use

Overview
TECHSPEC® Cw Series fixed focal length lenses are waterproof variants of the TECHSPEC® C Series. Engineered to meet IEC ingress protection ratings IPX7 and IPX9K, these lenses withstand immersion to 1 m for 30 minutes (IPX7) and close-range high-pressure, high-temperature spray downs (IPX9K) for applicable focal lengths. A hydrophobic coated front window reduces water droplet adhesion, and multiple O-ring seals prevent moisture ingress. Specified for up to 7.5 MegaPixel on 2/3\" sensors, the Cw Series is suitable for washdown and splash-prone industrial environments such as food processing, pharmaceuticals, automotive, and security. These lenses received the Bronze-Level 2021 Vision Systems Design Innovators Award.

Key Features

• Supports up to 2/3\" sensor format; C-Mount compatibility
• Waterproof (Cw) variants of C Series fixed focal length lenses
• Designed to meet IEC ratings IPX7 and IPX9K (note: select small focal lengths may be IPX7 only)
• Hydrophobic coated front window to resist water droplet settling
• Sealed housings with multiple O-rings to prevent moisture ingress
• Eliminates need for an external protective lens cover in many wet environments
• Optimized for imaging up to 7.5 MP

Family Variants and Related Sub-Families

• C Series: Locking cam focus and iris adjustment; most adjustable family for machine vision applications.
• Ci Series: Simplified mechanics with fixed apertures and compact sealed housing for locked focus.
• Cr Series: Optics glued with a locking C-clamp focus ring to reduce pixel shift and improve focus stability.
• Cx Series: Modular mechanics allowing disassembly and integration of accessories such as liquid lenses and apertures.
• Liquid Lens Cx Series: Integrated liquid lens for rapid autofocus.
• Cw Series: Waterproof optomechanical variant designed for IPX7 and IPX9K ingress protection.

Technical Information - Representative Images / Captions

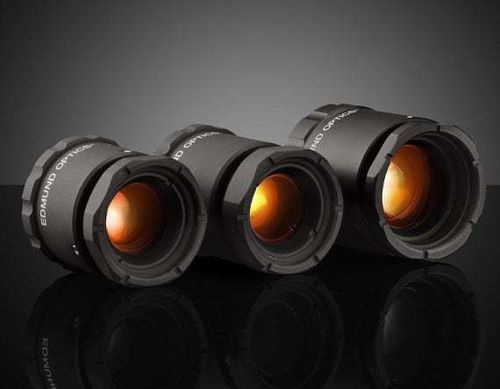

• Primary product image: TECHSPEC® Cw Series Fixed Focal Length Lenses
• 16 mm Cw Series fixed focal length lens (technical figure)
• 25 mm Cw Series fixed focal length lens (technical figure)
• 35 mm Cw Series fixed focal length lens (technical figure)
• Additional technical illustration (unlabeled figure)

Accessories (excerpt)
CW Series to LUCID Triton™ C-Mount Adapter with O-Ring | #23-669 | $53.00 | 20+ In Stock
5 pk. O-Ring for Cw Lenses | #22-790 | $23.50 | 5 In Stock
5.3 oz. Tube O-Ring Grease | #22-791 | $58.50 | 2 In Stock

Technical Specifications

• Sensor compatibility: up to 7.5 MegaPixel, 2/3\" sensor
• Mount: C-Mount (up to 2/3\" format)
• Ingress Protection: Designed to meet IPX7 and IPX9K (varies by SKU)
• Front element/window: Hydrophobic coated to reduce droplet adhesion
• Sealing: Multiple O-rings to prevent moisture ingress
• Iris: Fixed
• Coating: 425–675 nm BBAR
• Applications: food processing, pharmaceutical, automotive, security inspections and other washdown environments
