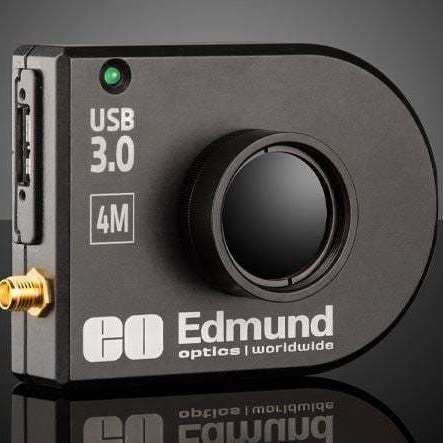

High-resolution laser beam profiler Beam Profiler 4M

camera

Overview
Edmund Optics® Beam Profilers measure a wide range of laser beam sizes and provide data to optimize laser system operation. They combine high-resolution and large-area sensors to enable accurate profiling of both small and large beams. Units are available in multiple sensor sizes and are threaded for 1" x 32 TPI (C‑Mount) for easy optical integration. An external trigger input supports synchronization with pulsed lasers and USB 2.0/3.0 interfaces enable fast data transfer.

Key Features

• High-resolution sensors for precise small-beam measurements
• Large-area sensor options for larger beams
• External trigger input for pulsed-laser synchronization
• USB 2.0 and USB 3.0 compatible interfaces
• Threaded 1" x 32 TPI (C‑Mount) for standard optics mounts
• Included beam analysis software with 2D, 3D and XY displays
• Software tools: background subtraction and Gaussian fit

Product Details (example for Edmund Optics Beam Profiler 4M)
Wavelength Range (nm): 350 - 1150
Input Beam Requirements: Minimum 55 μm (10 x 10 pixels)
Sensing Area, H x V (mm): 11.3 x 11.3
Software: USB included; intuitive beam analysis software with 2D/3D/XY displays, background subtraction and Gaussian fit

Notes
Software drivers available for download from the manufacturer. Products are compatible with LabVIEW.

Technical specifications

• Wavelength range (example model): 350–1150 nm
• Minimum measurable beam size (example): ~55 μm (10 x 10 pixels)
• Sensing area (example): 11.3 x 11.3 mm
• Mounting: 1" x 32 TPI threaded (C‑Mount compatible)
• Trigger: External trigger input for pulsed lasers
• Interface: USB 2.0 and USB 3.0 support
• Software: Included beam analysis software with 2D/3D/XY displays, background subtraction and Gaussian fit
• Available sizes: Multiple sensor size options to cover small to large beams
