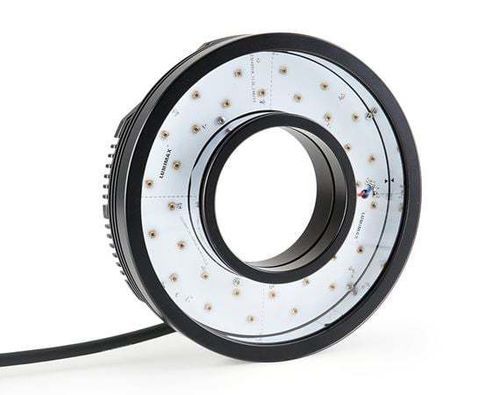

Dome machine vision light LUMIMAX®

ringLEDwhite

Overview
LUMIMAX® Ring Lights deliver uniform, shadow-free illumination for machine vision and industrial inspection tasks that require controlled lighting geometry and selectable wavelengths. These LED ring lights have a 150 mm outer diameter and support a range of accessory kits to adapt field of view and diffusion to specific inspection requirements.

Key Features

• Modular accessory options for configurable illumination setups
• Available wavelengths: White; Blue (470 nm); Green (528 nm); Red (625 nm); NIR (850 nm)
• Suitable for flat, matte and reflective surfaces

Product Details
LUMIMAX® ring lights provide consistent, shadow-free illumination optimized for high-contrast imaging. Accessory kits allow customization for viewing angle and surface type: the lens array kit (90-916) supplies 12°, 31° and 49° lens arrays to adjust field of view and working distance. The dome extension kit (90-913) converts the ring into a highly diffuse illuminator for reflective, curved or uneven surfaces. The window kit (90-915) includes a window, diffuser and polarizer to control transmission and reduce glare. An optional LUMIMAX Control Box (90-883) manages power and brightness adjustment to maintain stable illumination performance. LUMIMAX® Ring Lights are used in electronics inspection, surface defect detection and automated optical inspection applications.

Applications

• Electronics inspection
• Surface defect detection
• Automated optical inspection (AOI)

Technical specifications

• Outer Diameter: 150 mm (LED ring lights)
• Available Wavelengths: White; Blue (470 nm); Green (528 nm); Red (625 nm); NIR (850 nm)
• Lens Array Kit: #90-916 (includes 12°, 31°, 49° lens arrays)
• Dome Extension Kit: #90-913 (converts ring to highly diffuse illuminator)
• Window Kit: #90-915 (includes window, diffuser, polarizer)
• Optional Control Box: LUMIMAX Control Box #90-883 (power management and brightness adjustment)
• Illumination Type: LED ring, uniform / shadow-free
• Recommended For: flat, matte and reflective surfaces; high-contrast imaging
