LCD monitor VH-1212LO_15projected capacitive touchscreenresistive touch screeninfrared touchscreen
Add to favorites
Compare this product
Characteristics
- Technology
- LCD, projected capacitive touchscreen, resistive touch screen, infrared touchscreen
- Applications
- for digital signage, outdoor, marine, for aerospace applications
- Display size
- 12.1"
- Resolution
- 1024 x 768
- Mounting
- panel-mount, chassis-mounted
- Other characteristics
- HDMI, high-brightness, sunlight-readable, DVI port
Description

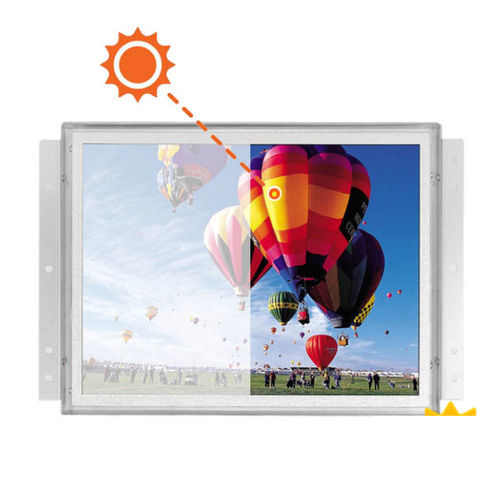

Show clear,vivid image in direct, bright sunlight condition.
RoHS Compliance, CE (Various Model) Certified.
Accessory : RGB, DVI Cable, Adapter, Power code
Specification
Panel spec
Active area (mm) - 245.76(H) X 184.32(V)
Pixel Pitch (mm) - 0.24(H) X 0.24(V)
Response Time - 16 ms
Contrast ratio - 800 : 1 (Typ)
Brightness(Min.) - 1350cd/m²
Brightness(Typ.) - 1500cd/m²
Viewing angle - 80 / 80 / 80 / 80
Operating Temp - -20'C ~ 70'C
Storage Temp - -30'C ~ 80'C
-
Standard type
Input Power - DC 12V
Touch - -
Option
Input Power - DC 24V, AC110~220V
Dimming - Auto, Knob, Manual
Temp. Control - Heating , Cooling
