LCD monitor VH-W1561LO_15PCAP capacitive touch screenresistive touch screenindustrial
Add to favorites
Compare this product
Characteristics
- Technology
- LCD, PCAP capacitive touch screen, resistive touch screen
- Applications
- industrial, for digital signage, outdoor, marine, for displays, for aerospace applications
- Display size
- 15.6"
- Resolution
- 1920 x 1080
- Mounting
- panel-mount, open-frame, chassis-mounted
- Other characteristics
- HDMI, high-brightness, DVI port, DisplayPort
Description

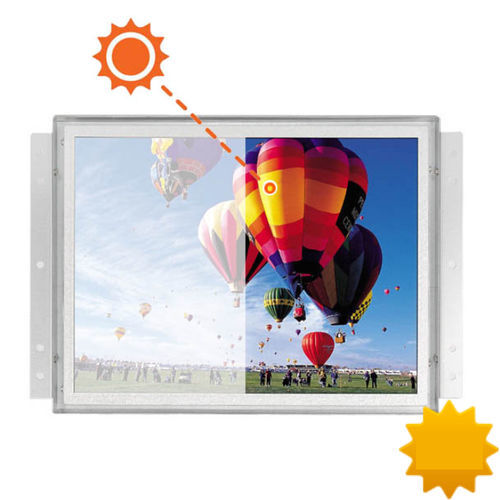

Show clear,vivid image in direct, bright sunlight condition.
RoHS Compliance, CE (Various Model) Certified.
Accessory : RGB, DVI Cable, Adapter, Power code
Specification
Panel spec
Active area (mm) - 344.16(H) X 193.59(V)
Pixel Pitch (mm) - 0.17925(H) X 0.17925(V)
Response Time - 25ms
Contrast ratio - 800 : 1
Brightness(Min.) - 1350cd/m²
Brightness(Typ.) - 1500cd/m²
Viewing angle - 89 / 89 / 89 / 89
Operating temp - -10'C ~ 60'C
Storage Temp - -20'C ~ 60'C
Standard type
Input Power - DC 12V
Touch - -
Option
Input Power - DC24V, AC 110~220V
Dimming - Auto, Knob, Manual
Temp. Control - Heating , Cooling
