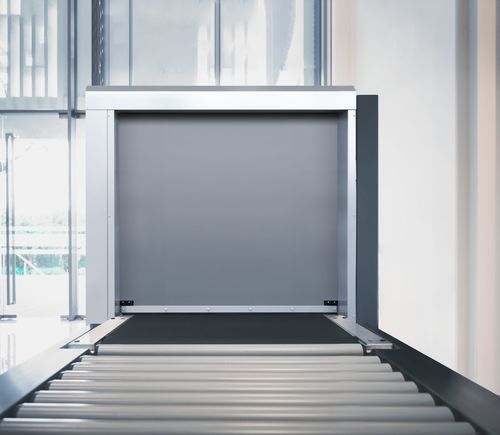

Roll up door EFA-SRT® MHT Compact

for shopfor conveyorsindustrial

Overview
The EFA-SRT® MHT Compact is a high-speed roll-up door designed for intensive use in conveyor and material-handling systems. Rated for up to 500,000 operating cycles per year, it features a compact, self-supporting construction with the control unit integrated into the frame for flexible, space-saving installation in constrained or complex systems (for example, airport baggage conveyors).

Key features

• Door system for industrial and commercial conveyor technology
• Control fully integrated into the frame design
• Self-supporting frames with floor fixing
• Rated for up to 3 cycles per minute
• Opening speed up to 1.5 m/s
• Up to 500,000 operating cycles per year
• Standard sizes up to width = 1,600 mm and height = 1,600 mm
• Compact design with full covering and no projections or visible screws
• Adaptable curtain sections to match conveyor technology requirements

Details
High duty cycle: The robust design allows the door to reliably perform up to 500,000 cycles per year, meeting the demands of continuous conveyor and intralogistics applications.

Self-supporting construction: The MHT Compact is built as a self-supporting unit with controls integrated into the frame, enabling installation in limited spaces and straightforward integration into automated systems.

Plant design & integration: With a fully covered casing and no protruding parts or visible screws, the door provides a clean appearance and minimizes interference with adjacent conveyor equipment. It is optimized for automatic conveyors, baggage handling and other high-throughput transport systems.

Documentation
Product brochure available in PDF (logistics door series MTL).

Technical specifications

• Maximum operating cycles: up to 500,000 cycles per year
• Cycle rate: up to 3 cycles per minute
• Opening speed: up to 1.5 m/s
• Standard maximum dimensions: width 1,600 mm, height 1,600 mm
• Construction: self-supporting frames with floor fixing
• Control: fully integrated into the frame
• Application areas: conveyor technology, baggage handling (airport), industrial and commercial use
• Design: compact, fully covered casing; no projections or visible screws
• Adaptability: different curtain sections available depending on conveyor requirements
