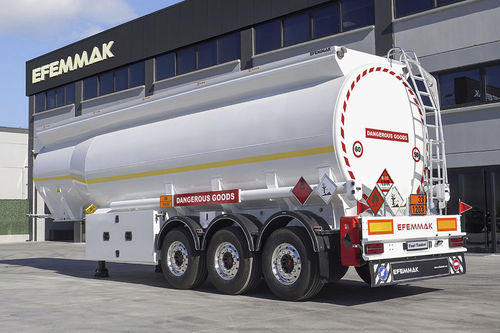

Fuel semi-trailer E.FAST.GN.38.5

semi-tanker3-axletowed

EFEMMAK E.FAST.GN.38.5 ADR ALUMINUM FUEL TRAILER Net 36.000 liters capacity GENERAL Length (L): 10,650 mm Width (W): 2,550 mm Height (H): 3,800 mm Tank Diameter (D): 2,300 mm Weight (Empty Vehicle): 5,450 kg (±%3) Wheelbase (WB): 6,750 mm Distance Between Axles (A): 1,310 mm 5th Wheel Height (H5): 1,220 - 1,250 mm Rear Overhang: 2,755 mm TANK Tank Code: LGBF CLASS 3 Certificate: Declaration of Conformity to ADR (with inspection report as per request) Transport Material Code: UN 1202 – 1203 Tank Gross Volume: 38 m³ Air Gap: 5% Tank Net Volume: 36 m³ Compartment Quantity: 5 compartments (11,500 – 7,500 – 6,500 – 5,000 – 5,500 liters) Tank Shape: Gooseneck Tank Material: Aluminum Elval EN AW 5182-H111 Series Tank Thickness: 5 mm Test Pressure: 0.46 bar Welding: Single-pass automated body welding compliant with ISO 3834-2 standards CHASSIS Two special extrusion profiles made from high-strength aluminum alloy Axle: SAF brand 9 tons x 3, air suspension Axle Load: 27,000 kg King Pin: SAF brand 2” 12,000 kg Axle Lifting System: First axle lift system that operates automatically based on the air cushion pressure and speed values entered from the EBS data Axle Lift Control: The remote-controlled electronic air suspension also allows for manual operation of the first axle lift Tires: 6 pcs Bridgestone ASFALT brand 385/65 R22.5 Rims: 6 pcs ALCOA LVL brand, aluminum Wheel Nut Caps: 10 caps per wheel, totaling 60 caps Brakes: Dual circuit electro-pneumatic WABCO brake system with EBS 2S/2M anti-lock system, compliant with UN ECE R13 regulations and integrated RSS electronic stability control system TPMS: Tire Pressure Monitoring System Landing Legs: SAF brand 24 tons
