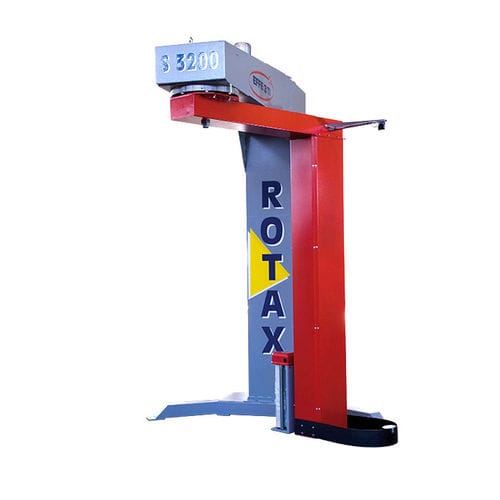

Rotary arm stretch wrapper Rotax S3200semi-automaticwith electromagnetic brakingfor the food and beverage industry
Add to favorites
Compare this product
Characteristics
- Type
- rotary arm
- Operating mode
- semi-automatic
- Braking type
- with electromagnetic braking
- Product applications
- pallet, for heavy loads, for the food and beverage industry, for loads, for logistics, for packaging, for bulky products, for heavy-duty applications
- Other characteristics
- stretch film, vertical, with top cover sheet dispenser
- Height
2,100 mm, 3,000 mm
(83 in, 118 in)- Maximum wrapping height
Max.: 3,000 mm
(118.11 in)3,000 mm
(118.11 in)Min.: 2,100 mm
(82.68 in)- Maximum pallet length
1,200 mm
(47.24 in)- Maximum pallet width
1,200 mm
(47.24 in)- Rotational speed
Max.: 15 rpm
(94 rad.min-1)Min.: 4 rpm
(25 rad.min-1)
Description
• The standard model is designed in order to wrap pallets with dimensions up to 1200 x 1200 mm with unlimited load capacity.
• The machine has 10 password protected programs.
• Standard machine pallet height h = 2100mm detected by photocell; on request special heights up to 3000 mm
• The rotation speed of the arm is regulated by an inverter (adjustable rotation from 4 to 15 rpm)
• Arm stop position controlled by sensor
• Customisable speed of the film carrier regulated by inverter
• Anti-fall system on the film carrier
