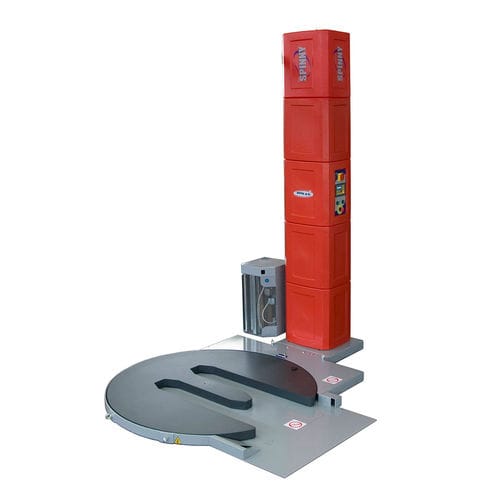

Turntable stretch wrapper Spinny S300-TP
semi-automaticfor loadsfor logistics

Turntable stretch wrapper - Spinny S300-TP - EFFE3TI Packaging Technologies - semi-automatic / for loads / for logistics
Turntable stretch wrapper - Spinny S300-TP - EFFE3TI Packaging Technologies - semi-automatic / for loads / for logistics
Turntable stretch wrapper - Spinny S300-TP - EFFE3TI Packaging Technologies - semi-automatic / for loads / for logistics - image - 2
Turntable stretch wrapper - Spinny S300-TP - EFFE3TI Packaging Technologies - semi-automatic / for loads / for logistics - image - 3
Turntable stretch wrapper - Spinny S300-TP - EFFE3TI Packaging Technologies - semi-automatic / for loads / for logistics - image - 4
Turntable stretch wrapper - Spinny S300-TP - EFFE3TI Packaging Technologies - semi-automatic / for loads / for logistics - image - 5
Turntable stretch wrapper - Spinny S300-TP - EFFE3TI Packaging Technologies - semi-automatic / for loads / for logistics - image - 6
Add to favorites
Compare this product
Go to the EFFE3TI Packaging Technologies website for more information

Characteristics

Type
turntable
Operating mode
semi-automatic
Product applications
pallet, for loads, for logistics, for packaging
Other characteristics
stretch film, vertical, with top cover sheet dispenser
Height

3,100 mm
(122 in)

Maximum wrapping height

2,100 mm
(82.68 in)

Max.: 3,100 mm
(122.05 in)

Min.: 2,100 mm
(82.68 in)

Maximum pallet length

1,200 mm
(47.24 in)

Maximum pallet width

1,200 mm
(47.24 in)

Maximum pallet weight

Max.: 2,000 kg
(4,409.25 lb)

Table diameter

Max.: 2,200 mm
(86.61 in)

Min.: 1,500 mm
(59.06 in)

Rotational speed

Max.: 10 rpm
(63 rad.min-1)

Min.: 5 rpm
(31 rad.min-1)

Voltage

230 V

Max.: 400 V

Min.: 230 V

Description

• Rotating table diameter 1500 mm, 1650 mm, 1800 mm, 2200 mm; load up to 2000 kg • Distance between column and rotating table 500 mm • Winding height 2100 mm, 2600 mm, 3100 mm detected by photocell • Table rotation regulated by inverter • Table stop position controlled by sensor • Variable speed of the film carrier • Film carrier fall prevention system • Work cycles controlled by PLC and electronic board Up to 3 years warranty
