self-centering vise / for machine tools / spring / precision
for machine tools
Max. clamping force:
229 N, 5,200 N
5 mm, 10 mm (0 in)

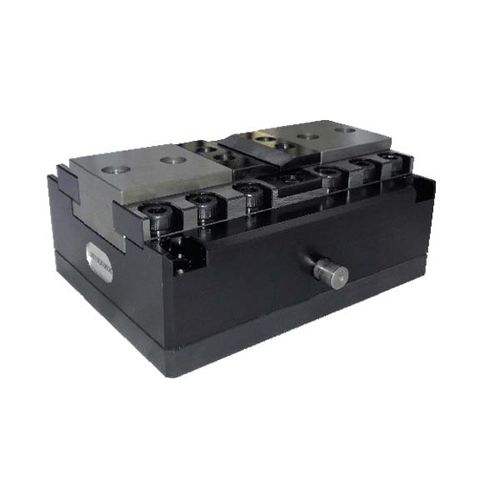

SELF-CENTRING VISE WITH MECHANICAL OPENING DRIVE AND SPRING CLOSING
Light working precision chuck easy to put on the machinery. Used on working and assembly machinery tain number of chucks is required. Springs closed system allows to save money on hydraulic or pneumatic systems on the machinery.
• Vise closed by springs. Push the bush using a pneumatic piston to open the chuck
• Graduated gripping force depends of springs inside the chuck .
• Caseharden and hardened steel; grinding nishing on sliding components.
Ambient temperature 5-60°C
Sound emissions (sound pressure) ≤ 70 db (A) in each direction
