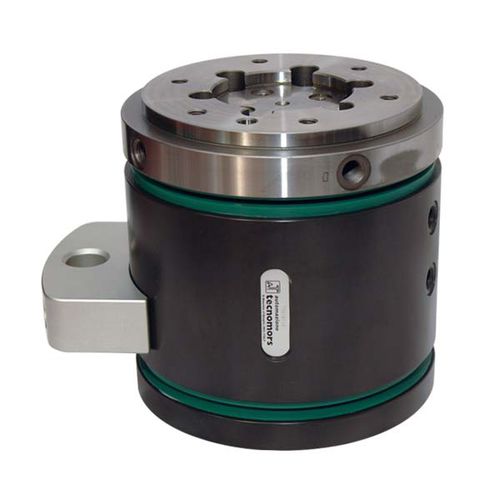

Robotic rotary distributor PRD series

rotarycompact

2-4 FEED-THROUGH PRD PRD is a rotary fluid feed-through for robot applications and rotary indexing tables with unlimited rotational movement. ADVANTAGES High strength, long life, no maintenance. Hardened steel inner hub for high power-transmission of modern robots. ISO flange pattern for easy mounting to most types of robots without needing additional adapter plates. 2 or 4 fluid feed-throughs (more feed-throughs available on request). Compact dimensions for minimal impact in customers’ applications. Smooth-running long-lasting seal ensures low starting torque and low continuous torque. Dirt protection by means of rotary seals. Air supply via axial or radial fitting screw connections. Ambient temperature 5-60°C Sound emissions (sound pressure) ≤ 70 db (A) in each direction
