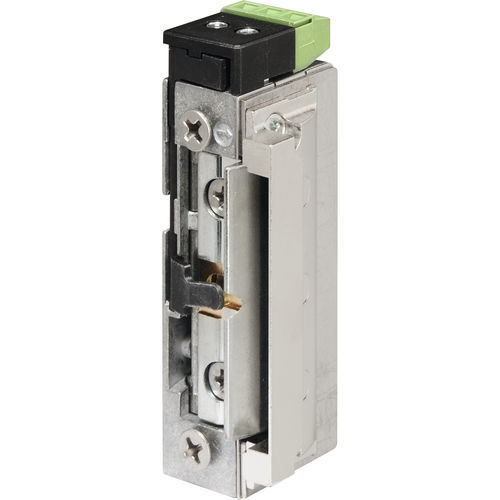

Electric strike box 118.60 series

Model with bipolar protective diode for access control systems. Monitoring contact as potential-free changeover contact, actuated by the latch bolt. Radius keeper, FaFix®, adjustable by 3 mm Voltage range Compatible with current mortise locks Compatible with ProFix® 1 striking plates Optimal latch ramps for gentle interaction with the latch bolt Symmetrical design. DIN left/right as well as horizontal applicable Dimensions - Height: 74 mm , Width: 25.1 mm , Depth: 25.5 mm Version - Standard electric strikes Latch version - Radius keeper Mounting - symmetrical Installation position - universal Configuration - Frame component With fixing - No With mechanical unlocking - No With feedback signal - No Opening direction according to DIN - left/right Waterproof - No Mounting method - Installation Compatible with Apple HomeKit - No Compatible with Google Assistant - No Type of current - AC/DC How they work - Fail-locked Compatible with Amazon Alexa - No IFTTT support available - No Pulse contact - Yes
