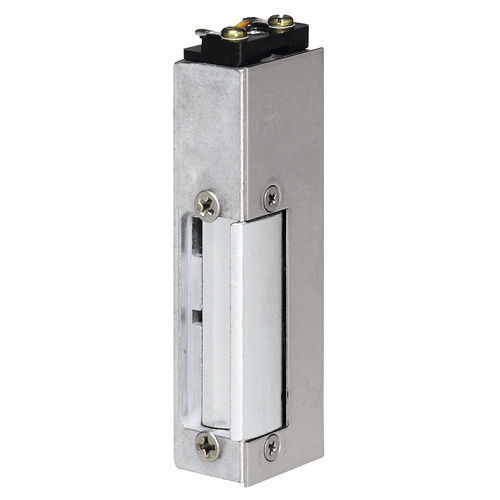

Electric strike box 34S series

Model with reversible design. The advantage lies in the fact that the connection also points upwards in the DIN-right version. This means the cable conduit is not near the deadbolt. The minimum gap between the keeper and casing lower surface enables DL and DR designs to be combined with locks which contain a minimum latch deadbolt clearance. For striking plates with minimum latch deadbolt clearance Suitable for all common striking plates Can be combined with striking plates with latch bolt guide (standard) without FaFix® Dimensions - Height: 97.5 mm , Width: 20 mm , Depth: 28 mm Version - Standard electric strikes Latch version - Standard latch Mounting - asymmetrical Installation position - universal Configuration - Frame component With fixing - No With mechanical unlocking - No With feedback signal - No Waterproof - No Mounting method - Installation Compatible with Apple HomeKit - No Compatible with Google Assistant - No Type of current - DC How they work - Fail-unlocked Compatible with Amazon Alexa - No IFTTT support available - No Pulse contact - Yes Adjustable keeper - No Adjustable electric strike - No
