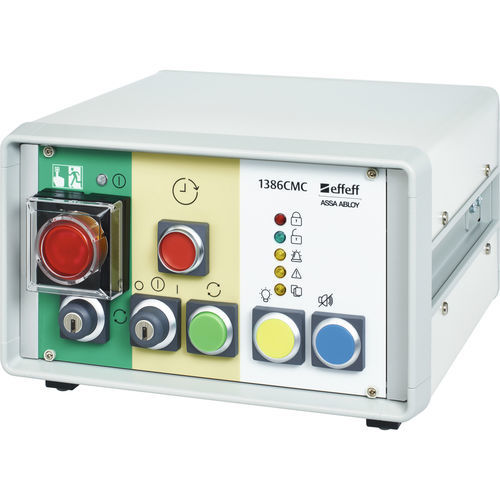

Automatic control unit 1386CMC-3-34200

DIN rail

The ePED® 1386CMC central escape route control system is a central operating panel with which authorised persons monitor and operate the electrically-controlled escape-door system, including the double release delay. To block the release, variant 1386CMCD is required. The operating panel contains an emergency push-button for the central release, operating and display elements for the double time delay and a status display of the linked escape-door system. System connector for setting parameters with ePED® service interface and software for MS Windows. The ePED® central escape route control system is connected with the escape doors via Ethernet. The doors are equipped with escape door systems with ePED® escape route technology. The Ethernet connection is established with an ePED® 1386CMC-CON CMC Connector on every escape door, whereby the following limits apply: one 1386CMC central escape route control system can control no more than 128 escape doors via 128 1386CMC-CON CMC connectors and one escape door can be controlled by no more than 32 1386CMC central escape route control systems.
