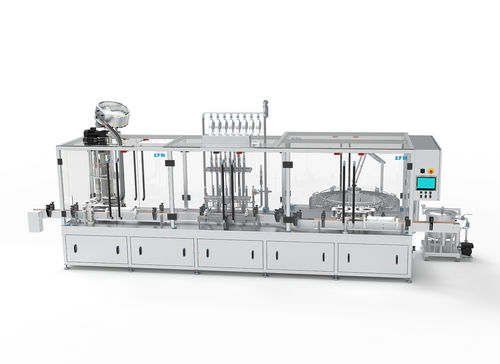

Twist-off cap rinser-filler-capper Triblock

automaticpiston

The triblock rinsing, filling and capping machine, is a multi-purpose device used for various applications, such as rinsing, filling and capping of a twist cap, lid or pressured cap. The machine is operated with a LCD touch screen, from which all functions can be configured, read out, enabled and stored. Rinsing methods In the rinsing process, you can choose between the following systems: 1.Rinsing with air 2.Rinsing with liquids Filling methods The filling method is selected based on the process characteristics, such as the liquids you are working with, the volume and the type of packaging. Some of the options are: •Digital flow meters (flow rate measurement) •Piston pump •Cogwheel flow meter •Peristaltic pump •And more Capping methods For the capping process, you can choose between manually positioning the lids, or use a fully automated cap supply system, using the pick & place system. For tightening and pressuring you can use: 1.Magnetic capping head 2.Servo capping head 3.Pressured capping head 4.Pilverproof capping head Your Benefits •Small machine ‘footprint’ •Cost reduction due to combined housing and operation of filling and capping machine •Short conversion time due to very limited amount of exchangeable parts •Specifications •Capacity: 600-5000/hour •Material: Stainless Steel and Synthetics •Control: Touch screen
