Digital temperature switch TN 553 series

digital temperature switch
digital temperature switch
digital temperature switch
digital temperature switch
Add to favorites
Compare this product


Characteristics

Other characteristics
digital
Temperature

Min.: -40 °C
(-40 °F)

Max.: 120 °C
(248 °F)

Description

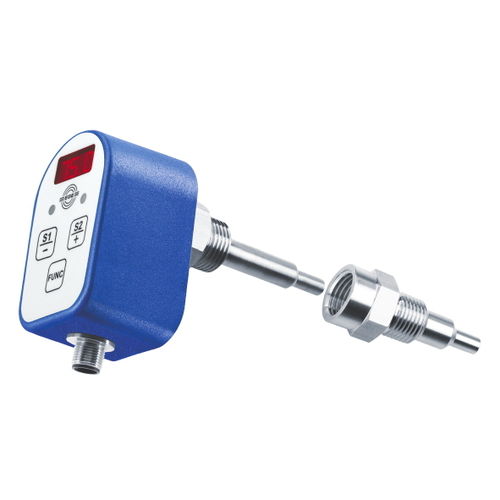

The EGE ELEKTRONIK TN 553 series temperature sensors feature a temperature range from -40 to 120 °C, and can be easily replaced during operation, due to stainless steel threaded sleeve that is mounted in the tank or pipe, offering removal without seal, tank or pipe damage. They contain two programmable switching points, a freely selectable hysteresis and a temperature window function. They require a 24 V DC source, with PNP or analog output. Also, the device can be ordered as a 230 V and 115 V AC version, featuring a Opto-MOS. They can be ordered with different cable lengths, and an optional plug-in or hardware connections, for implementation in existing systems. They contain a G1/2" gauge thread. Temperature sensors EGE's programmable temperature sensors feature a compact design and two switching outputs or one analog output. The easy-to-read digital display depicts the temperature to an accuracy of one position after the decimal point. Exchangeable during ongoingoperations through use ofthreaded sleeveMeasuring range – 40...+120 °CHysteresis and temperaturewindow easily programmable
