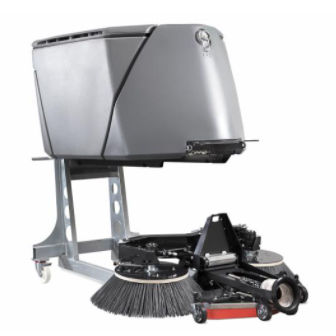

The City Ranger 3070 can be fitted with a complete suction sweeper unit offering professional sweeping performance.
As standard the hopper has a rotation filter system and a fresh water tank with 190 l capacity.
Front brush unit
The unit consists of a suction mouth and two front brushes with a water nozzle on each.
Vacuum sensor Monitors the flow through the suction hose and gives an indication if the suctions hose is clogged. With this feature, the collection can be optimized.
Brush pressure system
Activating the hydraulic weight distribution makes the front brushes follow ground variations. In addition, the operator can control the brush pressure from the controls in the
cabin. Being able to easily adjust the brush pressure to match the types and levels of debris allows the driver to drive with the lowest needed pressure on the brushes, and thereby reduce the wear on them. The system enhances performance and reduces operating costs.
Extra equipment (options):
3rd side brush
The 3rd side brush is equipped with a spring-loaded and collision-proof function, increasing the service life of the brush while also safeguarding surrounding objects. The tipping function is controlled via the cabin joystick and the hydraulic system of the machine and can advantageously be activated when encountering depressions, gutters, kerbstones, and the like. With the 3rd side brush sweeping is possible at two levels: while the two front brushes sweep the road, the 3rd side brush can sweep the pavement.
The wander hose system is handy for areas out of reach of the suction sweeper unit.
