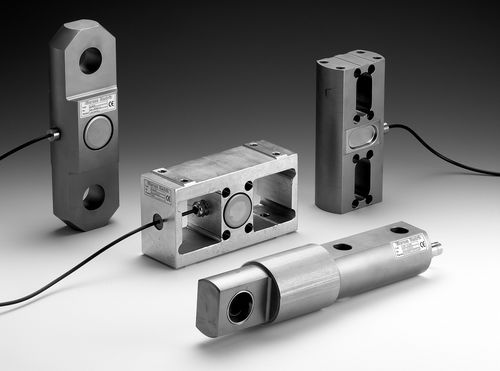

Beam type load cell ATEX, OIML

strain gaugecapacitivedigital

Customized Shockproof Digital Load Cells Based on Capacitive Technology Description Eilersen designs customized robust digital load cells for industrial applications like on-board truck weighing, crane scales, offshore installations, web tension measurement and heavy duty applications. Eilersen also develops and produces robust load cells for specific customer applications. OIML and ATEX certified versions are available Special features * Made in Denmark * Robust capacitive technology * Patented high reliability capacitive sensor * High tolerance of up to 1.000% overload * Stainless steel * Laser welded * Hermetically sealed to IP68 * High accuracy, High resolution * Digital filters * Cable length up to 100meters * Calibration independent of cable length * Load cell cable replaceable * Easy mechanical and electrical installation * Withstands welding voltages and ESD * Optional special load cell cable * Optional accuracy according to OIML R60 * Optional ATEX version (Zone 1, 2, 21, 22)
