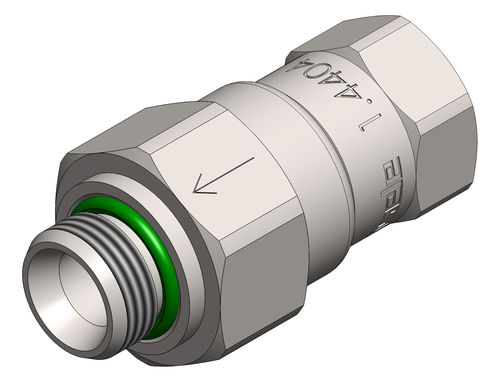

Poppet check valve 3145 threadedstainless steel
Add to favorites
Compare this product
Characteristics
- Type
- poppet
- Body
- threaded
- Material
- stainless steel
- Pressure
Max.: 16 bar
(232.1 psi)Min.: 0.5 bar
(7.3 psi)- Temperature
Max.: 120 °C
(248 °F)Min.: -20 °C
(-4 °F)
Description
- Input: Whitworth pipe thread interior
- Output: Whitworth pipe thread exterior
- Sealing FPM
- Material 1.4404
- Type: Poppet valve, FPM seals on metal
- Allowable medium: Air/Liquids
- Temperature range -20 to +120˚C
- Working pressure range 0.5 to 16 bar
