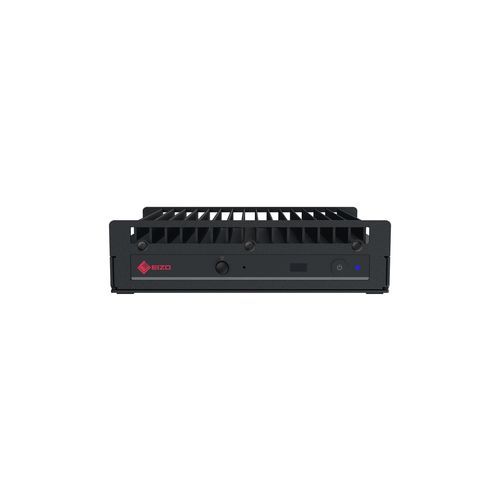

USB decoder DX0131-IP

codecaudioIP

Product overview
The DX0131‑IP is an IP decoding box designed for professional video surveillance and multi‑monitor/video‑wall deployments. It decodes IP camera streams directly (no PC required) and outputs up to 4K for monitoring stations. Compact, fan‑less design enables continuous 24/7 operation and discreet VESA mounting behind monitors.

Key features

• Codec support: H.265 (HEVC), H.264, MJPEG
• Up to 16 simultaneous decoded streams and registration of up to 16 cameras (multi‑page and sequential layouts supported)
• 4K output (3840×2160 @30 fps) and high‑frame Full HD output (e.g. 4× Full HD @60 fps on one monitor)
• Integrated alarm handling with Alert‑to‑Action (predefined network responses to events)
• Live streaming directly from IP cameras without local recording
• Audio passthrough to monitor speakers/headphones; supported codecs: OPUS, G.711, G.726, AAC
• Protocol support: ONVIF Profile S, Axis VAPIX, Panasonic, DirectURI (RTSP); RTSP over HTTP/HTTPS
• Secure communication: HTTPS, server certificates, IP address filtering, SNMP v1/v2c
• Privacy controls: static masks and virtual limitations (up to 10 objects per stream)
• PTZ and virtual PTZ control with intuitive image‑based pan/zoom
• Adjustable screen layouts: seven presets, custom layouts, multi‑page and sequential display with lock
• Settings sharing across networked IP boxes/monitors
• Ultrawide monitor support: 3840×1600 and 3440×1440
• Control: Web UI, USB mouse/keyboard/joystick (USB storage not supported)
• PoE+ built‑in hub; optional external power supply available
• Fan‑less, low heat for continuous operation; VESA mounting accessories available

Operation & integration
The DX0131‑IP decodes multiple camera feeds in real time and connects directly to IP cameras and VMS components without a PC. The Web UI provides configuration of layouts, PTZ, sequential display and camera management. Supports interoperability with major VMS and various camera protocols. Streams can be received via HTTP/HTTPS when RTSP is blocked, and network alarms can trigger predefined actions (layout changes, messages, audio, camera control, masking, power/scheduling actions).

Installation & power
Slim, compact housing is designed for mounting behind VESA‑compatible monitors to reduce footprint and cabling. Device is powered via PoE+; an optional external PSU is available where PoE+ is not provided. Mounting accessories include a VESA offset plate and model‑specific plates for selected monitors.

Security & compliance
Includes HTTPS authentication, server certificates, IP filtering and SNMP support for monitoring. Regular firmware and security updates and a defined cybersecurity lifecycle are provided. Manufactured in Japan; TAA and NDAA (NDAA 2019) compliance noted.

Sustainability & reliability
Designed for long service life with available replacement parts. Manufactured under ISO 14001 and ISO 50001 environmental/energy management systems. Packaging uses environmentally considerate materials. Built and validated for 24/7 operation.

Accessories (examples)

• VOP‑01 VESA offset plate for attaching the decoding box behind VESA monitors
• OPAVM‑P100 mounting plate for select FlexScan monitors
• DVAC‑02 optional external power supply

Characteristics / technical specifications

• Model name: DX0131‑IP
• Manufacturer / Brand: EIZO
• Decoding codecs: H.265 (HEVC), H.264, MJPEG
• Maximum simultaneous decoded streams: 16
• Registered cameras: up to 16 (multi‑page/sequential supported)
• Output examples: 3840×2160 @30 fps; 1920×1080 @60 fps
• Ultrawide resolutions: 3840×1600, 3440×1440
• Audio codecs: OPUS, G.711, G.726, AAC
• Protocols: ONVIF Profile S, Axis VAPIX, Panasonic, DirectURI (RTSP); RTSP via HTTP/HTTPS
• Network security: HTTPS, server certificates, IP filtering, SNMP v1/v2c
• Privacy: static masks and virtual limitations (up to 10 objects/stream)
• Control: Web UI, USB mouse/keyboard/joystick (no USB storage)
• Power: PoE+ hub built‑in; optional external PSU
• Design: fan‑less, compact for VESA mounting
• Warranty: 2‑year manufacturer warranty
• Compliance: Manufactured in Japan; TAA and NDAA (NDAA 2019) compliance noted
• Continuous operation: Intended for 24/7 use
