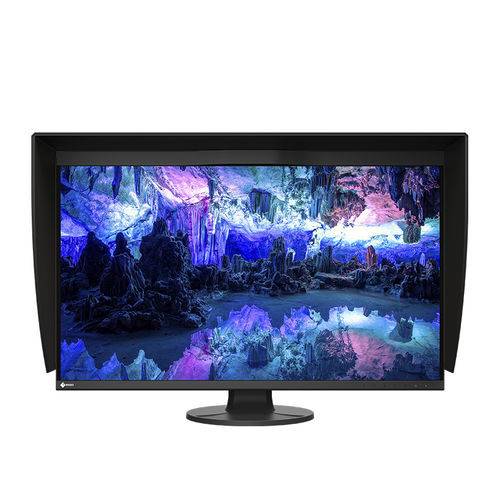

LED monitor CG3200X

31.5"3840 x 2160desktop

Overview
The CG3200X is the first OLED model in the ColorEdge family. It integrates EIZO's color management expertise with a Quantum Dot OLED (QD-OLED) panel to deliver precise color reproduction for editing, mastering and post-production workflows. The monitor features a 31.5-inch 4K UHD (3840 x 2160) screen, advanced HDR control (HLG and PQ), deep blacks, high peak luminance and a wide color gamut for faithful reproduction of film and broadcast content.

Key advantages

• QD-OLED panel with Anti-Glare, Low-Reflection surface for clear viewing in production environments.
• True HDR performance: 1,000 cd/m² peak luminance, 300 cd/m² full-screen white, and 1,500,000:1 typical contrast ratio for precise highlight-to-shadow reproduction.
• Wide color gamut: covers 99% of DCI-P3 and 94% of Adobe RGB for cinematic and photographic workflows.
• 10-bit simultaneous display from a 24-bit LUT (1.07 billion colors) and factory 16-bit LUT calibration for smooth tonal accuracy.
• Built-in calibration sensor to automate and schedule color calibration without third-party hardware.
• Single-cable USB Type-C connection (DisplayPort Alt Mode) carrying video, USB and up to 60 W power delivery, plus DisplayPort and HDMI inputs (HDCP 2.3 support).
• EIZO proprietary features: Digital Uniformity Equalizer (DUE), Color Fringe Reduction, Pixel Inspection and extensive preset modes (BT.709, DCI-P3, PQ, HLG, sRGB, CAL modes, etc.).

ABL and luminance control
EIZO's proprietary ABL control system raises luminance thresholds compared to conventional OLEDs to reduce unnecessary dimming during bright scenes. The monitor provides flexible dimming modes: Highlight Dimming (reduces brightness only in the most luminous areas) and Uniform Dimming (reduces brightness evenly across the screen). A blue status indicator signals when ABL is active. Luminance Warning visually indicates clipped areas and, in Highlight Dimming, highlights regions affected by ABL using selectable indicator colors.

Editing and mastering features
The CG3200X supports HLG and PQ (perceptual quantization) transfer functions for broadcast and film production. It offers a custom contrast setting (500:1 to 2000:1 in 100-step increments) to match SDR working conditions, faithful motion support for cinematic frame rates (native 24 Hz and 48 Hz), and anti-glare low-reflection coating for comfortable long sessions.

Color management and workflow integration
The monitor includes a built-in calibration sensor and is compatible with EIZO ColorNavigator software for automated scheduling and high-precision calibration. ColorNavigator API is available to integrate calibration and management functions into third-party applications and networked workflows. Factory Report shipped with each unit documents uniformity, gamma, gamut coverage and color temperature.

Signal processing and image scaling
Sync Signal automates selection of appropriate color settings and EOTF based on input metadata. The monitor supports Nearest Neighbor interpolation for pixel-perfect scaling and conventional interpolation for smooth gradations, selectable via OSD. Additional OSD functions include input color format controls, I/P conversion, zoom and picture expansion.

Design and usability
Immersive two-sided frameless design with a slim upper bezel housing the built-in sensor. A magnetic shading hood is included to reduce ambient glare. Built-in KVM enables controlling multiple connected PCs with a single keyboard and mouse via the monitor's USB hub. Easy-access headphone jack provides direct audio monitoring. Supplied signal cables include USB Type-C and HDMI, and the monitor supports USB upstream (Type-C and Type-B) and two USB Type-A downstream ports.

OLED protection and longevity
Multiple built-in functions reduce the risk of image retention and extend panel life: screen saver that lowers brightness for static images, Pixel Shift (wobbling), Pixel Cleaning (Off Sensing) to compensate degradation, and Thermal Modulation to reduce brightness under high internal temperature. ABL Safe View reduces the displayed area (10% or 25%) to allow previewing content at intended brightness without triggering ABL.

Sustainability and packaging
Parts of the monitor use recycled plastic and the packaging uses molded pulp from recycled cardboard and newspaper; cables are wrapped in paper instead of plastic. EIZO states production sites at its headquarters operate on renewable energy and the product is designed with energy efficiency in mind.

Warranty and quality
The CG3200X is backed by a 5-year manufacturer warranty. Usage notes include time-limited conditions: general usage time limits and a specific limited warranty period for the OLED panel. EIZO provides a zero-bright-sub-pixel guarantee for a defined period from purchase.

Caractéristiques / spécifications techniques

• Model variations: CG3200X-BK
• Panel type: QD-OLED (Anti-Glare, Low-Reflection)
• Screen size: 31.5" (79.9 cm)
• Native resolution: 3840 x 2160 (4K UHD, 16:9)
• Viewable image size (H x V): 696.6 x 391.8 mm
• Pixel pitch: 0.181 x 0.181 mm
• Pixel density: 140 ppi
• Display colors: 1.07 billion (10-bit simultaneous, 24-bit LUT)
• Viewing angles (H / V): 178° / 178°
• Brightness: 1000 cd/m² (Peak), 300 cd/m² (Full-screen white)
• Contrast ratio (typical): 1,500,000:1
• Response time (typical): 0.1 ms (gray-to-gray)
• Color gamut (typical): Adobe RGB 94%, DCI-P3 99%
• Input terminals: USB Type-C (DisplayPort Alt Mode, HDCP 2.3), DisplayPort (HDCP 2.3), HDMI (Deep Color, HDCP 2.3)
• Digital scanning frequency: USB-C/DP 25 - 137 kHz / 23 - 61 Hz; HDMI 15 - 136 kHz / 23 - 61 Hz
• USB: Upstream USB 5Gbps Type-C (Power Delivery source 60 W max.) and Type-B; Downstream USB 5Gbps Type-A x2
• Audio: Input via USB-C/DisplayPort/HDMI; Output headphones (stereo mini jack)
• Power: AC 100 - 240 V, 50 / 60 Hz; Typical power consumption 65 W; Maximum 275 W; Standby 0.5 W or less
• Built-in calibration sensor: Yes
• Preset modes: User, BT.709, DCI-P3, PQ_DCI-P3, PQ_BT.2100, HLG_BT.2100, sRGB, Display P3, CAL1, CAL2
• Key features: Digital Uniformity Equalizer (DUE), Color Fringe Reduction, Pixel Inspection, Luminance Warning, Nearest Neighbor scaling, SelfCalibration, KVM, Marker, Menu Rotation, Off Timer and more
• OSD languages: English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese
• Dimensions (Landscape, W x H x D): 717.4 x 453.6 - 595.7 x 245 mm
• Dimensions (Without stand): 717.4 x 442.6 x 86.7 mm
• Dimensions (Landscape with hood): 727.4 x 458.6 - 600.7 x 364.2 mm
• Net weight: 10.3 kg; Without stand: 7.3 kg; With hood: 11.0 kg
• Height adjustment range: 142.1 mm; Tilt: 35° Up, 5° Down; Swivel: 344°; Pivot: 90°
• Hole spacing (VESA): 100 x 100 mm
• Operating temperature: 0 - 35 °C; Operating humidity: 20 - 80% (non-condensing)
• Certifications & standards: CB, CE, UKCA, cTUVus, FCC-B, CAN ICES (B), VCCI-B, RCM, RoHS, WEEE
• Supplied accessories (typical): USB Type-C cable (2 m), HDMI cable (2 m), AC power cord, USB Type-A to Type-B cable (2 m), Setup guide, Factory Report, Monitor hood, Warranty card
• Warranty: 5 years (with usage/time limitations and OLED panel specific conditions)
