LCD monitor EV3851X series

LED backlightIPS LCDfor displays

Product Overview

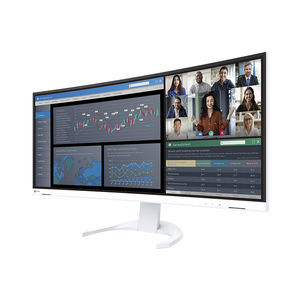

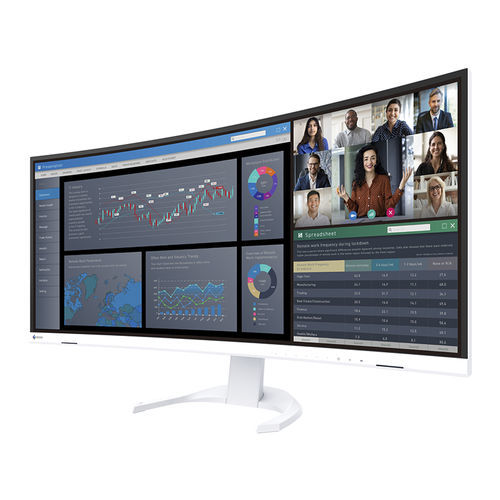

FlexScan EV3851X is a 37.5-inch ultrawide, curved Color LCD monitor (UWQHD+ 3840 x 1600, 24:10) designed for expanded workspace and long-term reliability. Tagline: See Wider. Trust Longer.

Key Features

• World's first 7-year monitor warranty (usage time limited to 30,000 hours).
• 37.5" ultrawide curved screen with 24:10 aspect ratio providing near-three-times Full HD horizontal resolution for flexible multi-application layouts without bezel interruptions.
• UWQHD+ native resolution 3840 x 1600, pixel density 111 ppi, pixel pitch 0.229 x 0.229 mm, viewable image size 879.7 x 366.5 mm.
• IPS panel with LED backlight, typical brightness 300 cd/m², typical contrast ratio 2000:1, response time 5 ms (gray-to-gray), curvature 2300R, viewing angles 178°/178°.
• Color performance: 16.77 million colors; color gamut typical: sRGB 100%, DCI-P3 96%.
• Picture-by-Picture (PbyP) support for simultaneous display of two connected PCs and built-in KVM switch to share one keyboard/mouse across multiple PCs (hotkey operation available in PbyP mode).
• Preset display modes including User1, User2, Eco, sRGB, Paper, BT.709, DCI-P3, Display P3, Display P3 (Apple), and DICOM for video/content workflows.

Connectivity & Workflow

• USB Type-C (DisplayPort Alt Mode) supports video, audio, USB data, power delivery (94 W max), and network pass-through for single-cable docking.
• DisplayPort and HDMI inputs (HDMI x2). HDCP support: DisplayPort/USB-C HDCP 2.3 / 1.3, HDMI HDCP 2.3 / 1.4.
• Built-in 4-port USB hub: USB 5Gbps Type-A x3 downstream and USB 5Gbps Type-C downstream (Type-C current 15 W max); upstream: USB Type-B 5Gbps and USB Type-C 5Gbps.
• Built-in LAN (RJ-45 2.5GBASE-T) with MAC address pass-through to enable stable wired network access via the monitor when connected by USB-C.
• Speakers: 2.0 W + 2.0 W; audio input via USB Type-C / DisplayPort / HDMI; headphones output (stereo mini jack).

Make the Most of a Large Screen
Convenient multi-input connections, KVM functionality, and presets for Display P3 / DCI-P3 / BT.709 support workflows for Apple devices and video production. Input switching is operable with front buttons or keyboard hotkeys.

Eye Care Features

• Auto EcoView: ambient brightness sensor automatically adjusts screen brightness throughout the day.
• Paper Mode reduces blue light; combined with Auto EcoView can reduce blue light by up to 80% when appropriate.
• Hybrid flicker-free solution to eliminate perceived flicker while maintaining color stability at low brightness.
• Minimum adjustable brightness approx. 1 cd/m² for comfortable viewing in dim environments.

Sustainability & Energy

• Portions of the monitor cabinet use recycled plastic; eco-conscious packaging uses recycled cardboard and reduces plastic in packaging.
• EcoView Optimizer 2 and Auto EcoView help lower power consumption; Eco Mode preset further reduces consumption (up to 60% compared to maximum brightness in specific conditions).
• Certified to recognized sustainability standards (examples include TCO Certified generation 10, EPEAT Gold with Climate+, ENERGY STAR).

Design & Ergonomics
The monitor features a slim bezel and an aesthetic cabinet available in white or black with matching stands and cables. Flexible ergonomics: height adjustment, tilt, and swivel to fit various workstyles.

Model Variations

• EV3851X-BK: with FlexStand, black
• EV3851X-WT: with FlexStand, white
• EV3851X-FBK: without stand, black
• EV3851X-FWT: without stand, white (FlexStand is removable)

Caractéristiques / Spécifications techniques

• Panel Type: IPS
• Backlight: LED
• Size: 37.5" (95.3 cm)
• Native Resolution: 3840 x 1600 (24:10 aspect ratio)
• Viewable Image Size (H x V): 879.7 x 366.5 mm
• Pixel Pitch (H x V): 0.229 x 0.229 mm
• Pixel Density: 111 ppi
• Curvature: 2300R
• Display Colors: 16.77 million
• Viewing Angles (H / V, typical): 178° / 178°
• Brightness (typical): 300 cd/m²
• Contrast Ratio (typical): 2000:1
• Response Time (typical): 5 ms (gray-to-gray)
• Color Gamut (typical): sRGB 100%, DCI-P3 96%
• Input Terminals: USB Type-C (DisplayPort Alt Mode, HDCP 2.3 / 1.3), DisplayPort (HDCP 2.3 / 1.3), HDMI (HDCP 2.3 / 1.4) x 2
• Digital Scanning Frequency (H / V): USB Type-C / DisplayPort / HDMI: 31 - 99 kHz / 29 - 61 Hz
• USB Upstream: USB 5Gbps Type-B; USB 5Gbps Type-C (DisplayPort Alt Mode, Power Delivery Source 94 W max.)
• USB Downstream: USB 5Gbps Type-A x3; USB 5Gbps Type-C (Type-C Current 15 W max.)
• USB LAN Adapter: RJ-45 (2.5GBASE-T) supported on Windows 11, macOS Monterey (12) or later
• Speakers: 2.0 W + 2.0 W; Output: Headphones (stereo mini jack)
• Power Input: AC 100 - 240 V, 50 / 60 Hz
• Typical Power Consumption: 26 W
• Maximum Power Consumption: 220 W
• Standby Mode: 0.3 W
• Preset Modes: User1, User2, Eco, sRGB, Paper, BT.709, DCI-P3, Display P3, DICOM
• Simultaneous Display: Picture by Picture (2 PbyP)
• Automatic Brightness Control: Auto EcoView
• OSD Languages: English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese
• Dimensions (Landscape, W x H x D): 893.9 x 416.9 - 611.9 x 247.1 - 250.2 mm
• Dimensions (Without Stand, W x H x D): 893.9 x 402.2 x 112.3 mm
• Net Weight: 13.0 kg
• Net Weight (Without Stand): 10.3 kg
• Height Adjustment Range: 195 mm
• Tilt: 35° Up, 5° Down
• Swivel: 70°
• Hole Spacing (VESA Standard): 100 x 100 mm
• Operating Temperature: 5 - 35 °C
• Operating Humidity (R.H., non-condensing): 20 - 80%
• Certifications & Standards: TCO Certified generation 10, EPEAT Gold with Climate+, TUV/Ergonomics, TUV/Low blue light content, TUV/Flicker Free, CE, UKCA, CB, cTUVus, FCC-B, EPA ENERGY STAR, RoHS, WEEE, China RoHS (may vary by country)
• Warranty: 7 Years (manufacturer warranty; usage time and conditions apply)
