Bracket support MS-Albedo Kit

for measuring devicesstainless steelrod

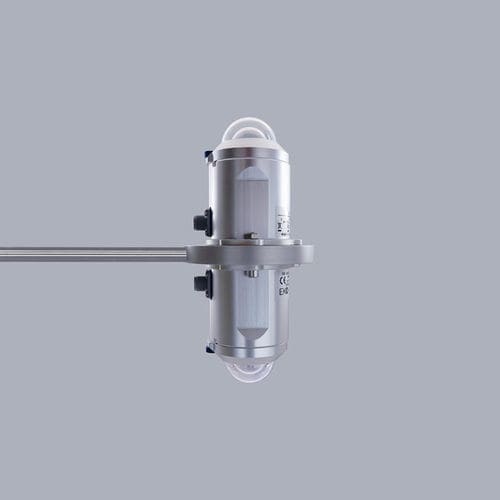

MS & S-Series Compatible The MS-Albedo kit is designed to accommodate x2 pyranometers for albedo or reflected irradiance measurement for Bi-facial PV applications and is compatible with any MS & S-Series pyranometer. The kit contains a mounting plate, 700 mm rod, albedo glare screen and mounting accessories, is easy to assemble on-site, and is made of robust aluminium and stainless steel parts for reliability in all weather conditions. The packaged albedo glare screen is recommended for GHI albedo applications to limit the field of view and avoid dome reflections at low solar elevation angles. Albedo Mounting Kit - 2 positions - - Pyranometer (GHI) - MS & S-Series - - Dimensions - Plate ø 95 mm / ø 15mm Rod L = 700mm - - Compatible with MV-01 - No
