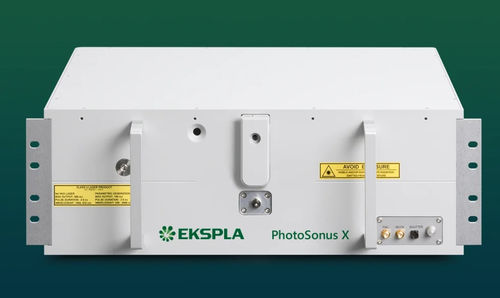

Pulsed laser system PhotoSonus X

triggeredsolid-stateinfrared

PhotoSonus X is a high output power DPSS tunable laser designed for photoacoustic imaging, suitable for both pre-clinical and clinical applications where fast sample scanning and high-resolution imaging are required. Its high output energy, broad wavelength tuning range, up to 100 Hz repetition rate, and fast wavelength switching make it ideal for high data acquisition rates and high-resolution imaging. The system is built on a diode pumped solid-state laser platform, ensuring quieter operation compared to flash-lamp pumped lasers, which is particularly beneficial for clinical environments. The laser's output can be coupled with almost any type of fiber bundle, and optional features such as an internal energy meter and electromechanical shutter with self-test capability make it ready for certification in clinical photoacoustic applications. The well-engineered system design and diode pumped technology ensure high reliability and low operational costs.

Features

• Ultra-wide signal tuning range from 660 to 1300 nm
• Fully motorized wavelength tuning
• Fast wavelength switching
• Externally triggerable
• High, up to 90 mJ pulse energy from OPO
• 100 Hz or 50 Hz pulse repetition rate
• Certification ready
• Quiet operation < 60 dB
• Integrated DPSS pump laser and OPO into a single housing
• Fiber bundle or fiber output
• Signal and idler through the same output (optional)
• Integrated energy meter (optional)
• Electromechanical output shutter with laser self-test capability

Specifications

• Model Variants: PhotoSonus X-50, PhotoSonus X-100
• Wavelength Range: Signal: 660–1300 nm; Idler (optional): 1065–2600 nm
• OPO Output MAX Pulse Energy: X-50: >90 mJ; X-100: >50 mJ
• Pulse Repetition Rate: X-50: 50 Hz; X-100: 100 Hz
• Scanning Step: Signal: 0.1 nm; Idler: 1 nm
• Pulse Duration: 2–5 ns
• Signal Linewidth: < 15 cm⁻¹ at 700 nm or higher
• Typical Signal Beam Diameter (1/e²): 6 ± 1 mm
• Control Interfaces: LAN, RS232
• Cooling: Closed loop air-water cooled (using external chiller)
• Unit Size (W × L × H): 551 × 400 × 162 mm
• Power Supply Size (W × L × H): 483 × 390 × 140 mm
• Umbilical Length: 0.5 m
• Operating Room Temperature: 18–27 °C
• Relative Humidity: 20–80% (non-condensing)
• Power Requirements: 100–240 V AC, single phase, 50/60 Hz
• Power Consumption: < 2 kW

Additional Notes

• Laser must be connected to mains electricity at all times. If disconnected for more than 1 hour, a warm-up period of a few hours is required before switching on.
