Radio control M
joystickwith toggle switchrotary switch

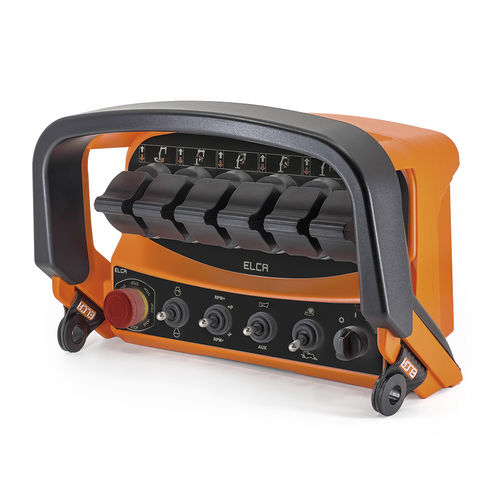

Radio control - M - ELCA RADIOCONTROLS - joystick / with toggle switch / rotary switch
Radio control - M - ELCA RADIOCONTROLS - joystick / with toggle switch / rotary switch
Radio control - M - ELCA RADIOCONTROLS - joystick / with toggle switch / rotary switch - image - 2
Radio control - M - ELCA RADIOCONTROLS - joystick / with toggle switch / rotary switch - image - 3
Radio control - M - ELCA RADIOCONTROLS - joystick / with toggle switch / rotary switch - image - 4
Radio control - M - ELCA RADIOCONTROLS - joystick / with toggle switch / rotary switch - image - 5
Radio control - M - ELCA RADIOCONTROLS - joystick / with toggle switch / rotary switch - image - 6
Add to favorites
Compare this product

Characteristics

Type
radio
Control interface
joystick, with toggle switch, rotary switch
Product applications
for drilling, industrial, for articulated cranes, for deck cranes, for woodworking, for lifting equipment, for hydraulic cranes, conveying, for trucks, for agricultural applications, for concrete mixers, for demo equipment, for marine applications, PLC, for tunneling, for concrete pumps, for contactors, for conveyor belts, for mining equipment, relay
Features
with emergency stop
Protection level
IP65, rugged
Battery type
rechargeable, Ni-MH
Other characteristics
safety, rugged, with feedback, custom-made, belt
Certifications
CE certified
Reach

150 m
(492'01" )

Length

180 mm
(7.09 in)

Width

200 mm
(7.87 in)

Weight

1,100 g
(38.801 oz)

Temperature

Min.: -25 °C
(-13 °F)

Max.: 55 °C
(131 °F)

Charging time

4 h

Continuous working time

20 h

Description

The safety industrial radiocontrol (cableless control) M is the winning choice for its flexibility and available surface. Can be fitted with single or double axis joystick and permits a wide range of layout: potentiometers, toggle switches, many kind of buttons, with up to 6 proportional outputs (8 Bravo series) and 28 on/off commands. Interchangeable battery, to work up to 20 hours. Automatic frequency change; analogic commands remote setup. Available a solo on/off version, too. It is used in the remote control of septic pumps, dust suppressors, compact presses, quarry machines, sawing machines, mills, screeners, conveyors, demolishers, drilling machines, tunneling machines, tow trucks, mobile food or shops trucks, tail lifts, tower cranes, self-erecting cranes, container trucks, hooklift, overhead cranes, beam cranes, tripod cranes, flag cranes, hydraulic cranes for trucks, mobile cranes, aerial platforms, industrial processes, logistics.

VIDEO
