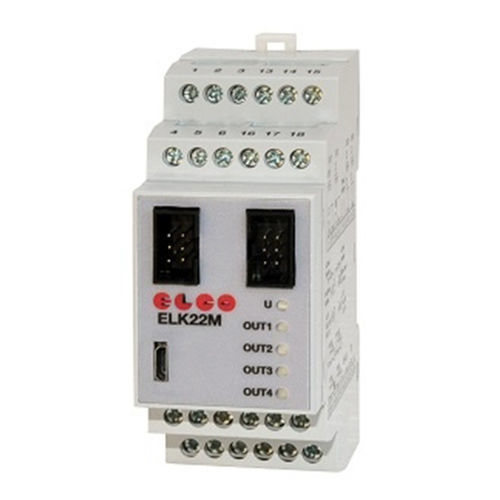

Digital temperature controller ELK 22 MS

PIDthermoelectricIP20

Digital temperature controllers | Temperature controllers Technical Data Power supply: 24 VAC/VDC, 100…240 VAC +/-10% Power consumption: 6 VA approx AC Frequency: 50 / 60 Hz Universal input: Thermocouples J, K – Thermoresistors Pt100 2/3 wires Thermoresistors PTC KTY81-121 – NTC 103AT-2 – Linear signals 0/10 V – 0/4-20 mA Normalized signals inputimpedance: For input 0/4-20 mA: 51 Ω – For mV and V input: 1 M Ω Relay: Up to 2 outputs: 2 outputs SPDT (6A AC1 / 250 VAC) Relay electric life: Up to 2 outputs, 20 mA / 10 VDC with short circuit protection Auxiliary power supply output: 16 VDC / 20 mA max. only for instruments with 12 VAC/DC as power supply (OUT 5) Control: ON/OFF, PID single action Overall accuracy: +/-0.5% full scale Display resolution: According to the used probe 1/0.1/ Other tecnical features: see document attached
