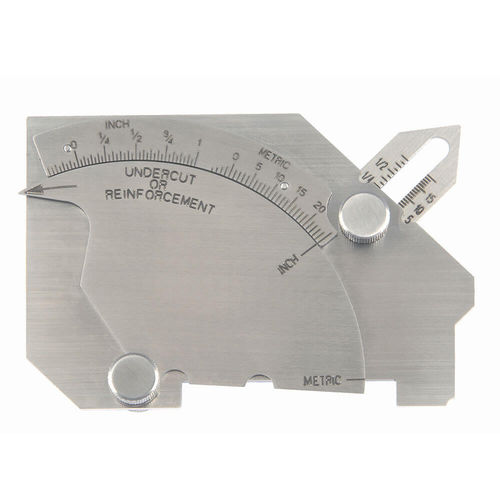

Weld seam measuring gauge H147----1

The Elcometer 147 Weld Gauge measures many aspects of welds in both Metric and Imperial units. The Elcometer 147 Weld Gauge includes: • angle of preparation 0 to 60° • misalignment (high - low) • fillet weld throat size • fillet weld length • 2mm (0.79”) edge roundness test • excess weld metal (capping size) • depth of undercut • depth of pitting • general linear measurements up to 60mm (2”)
