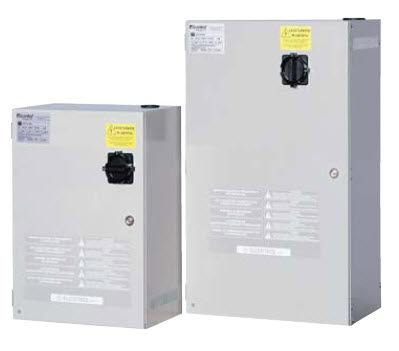

PFC system max. 100 kVAr | STPF

CONTROL PANEL This equipment is suitable for indoor installation in a dustfreeand well-ventilate denvironment, protected from accidental shocks and impacts and direct sunlight. The equipment must be installed in an environment with ambient temperatures between -5 and +40°C, maximum relative humidity not exceeding 90% at 20°C, and at an altitude below 2000m a.s.l. Protection degree IP30 with covers installed. Colour RAL7032. Reference standards CEI EN 60439-1 when applicable. POWER INPUT Top-mounted power cable inlet for direct connection to the main three-pole load break switch terminals, with door interlock. Power factor correction bank protection ensured by high breaking capacity fuses (100kA). POWER FACTOR CORRECTION BANKS Single-step power factor correction bank, realized with MCE capacitors.
