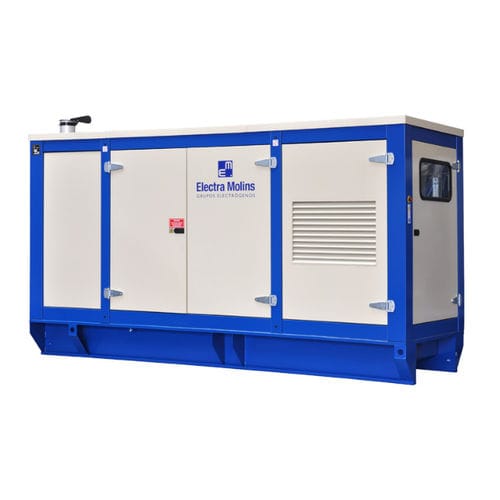

Diesel generator set EMD-350
three-phasecontainerizedstationary

diesel generator set
diesel generator set
diesel generator set
Add to favorites
Compare this product


Characteristics

Motor type
diesel
Phase
three-phase
Portability
containerized, stationary
Frequency
50 Hz
Fuel System
direct fuel injection
Cooling system
water-cooled
Options and accessories
soundproofed
Power in kVA

Min.: 315 kVA
(428.28 hp)

Max.: 350 kVA
(475.87 hp)

Rotational speed

1,500 rpm
(9,425 rad.min-1)

Noise level

Min.: 95 dB

Max.: 115 dB

Description

The stated outputs correspond to the maximum continuous power with variable load according to ISO-8528-1, in atmospheric conditions of 40ºC and 1000 m of altitude. The generating set can operate at higher temperatures and altitudes with the application of power correcting factors. The prime power output admits a 10% overload in limited time peaks, maximum one hour every 12 hours. However, in order to extend the engines life, it is advised that the average active power charges (kW), either continuous or discontinuous, connected to the generating set during any 24 hours working period, should not exceed: 70% PRP power, in main service. 80% LTP power, in standby service on mains failure
