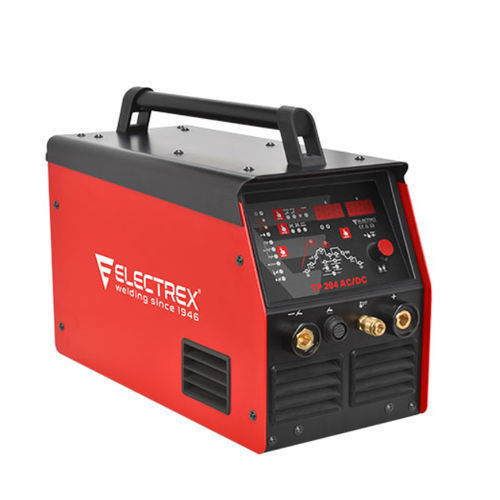

Inverter welder TP 204

MMATIGelectrode

• Inverter with single-phase power input for TIG and MMA welding in direct current (DC) or AC current (AC). • The complete machine for all materials, allowing excellent properties and welding results in AC mode – for welding aluminum and light alloys, or DC – for welding carbon steels, stainless steels and other ferrous metals. • Models with 9 memories to memorize welding programs. • Maximum mobility assured by carrying handle or integration into a trolley with cooling module or drawer. • Suitable for all demanding TIG welders, professionals or beginners who also needs to weld aluminum and light alloys Maximum primary current (MMA/TIG) - 45,32/31,07A Maximum power (MMA/TIG) - 10,38/7,16kVA Fuse - 32A No-load voltage - 67,70V Duty Cycle 45% - 200A Duty Cycle 60% - 160A Duty Cycle 100% - 140A Protection - IP 23S Insulation class - H Weight - 14,9kg Weight with trolley - 39,4kg Weight with cooler - 55,7kg Dimensions without trolley (HxWxL) - 356 x 230 x 480 mm Dimensions with trolley (HxWxL) - 740 x 470 x 1030 mm
