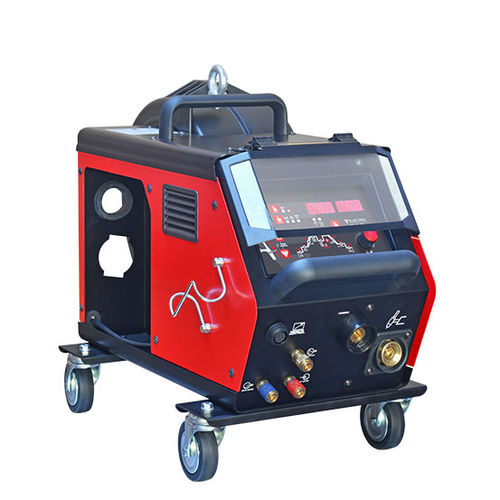

Welding wire feeder TIG AF

industrialfor welding applicationsfor steel coils

• TIG welding feeder that allows the addition of wire in the TIG welding bead intermittently or continuously • Increased productivity and weld quality due to constant wire addition. • Reduction of costs without waste of addition material. • Usable in all welding applications TIG manual, automatic and orbital thin or thick plate, piping, recharge. • Input voltage : 1x230V (+/- 10%) • Frequency : 50/60 Hz • Maximum primary current : 1A • Motor power : 50W • Duty Cycle 60% : 250A • Duty Cycle 100% : 200A • Feed rolls : 2 feed rolls + 2 flat rolls • Wire coil : 5/15/150kg • Wire speed : 0,5-10m/min • Weight : 21,1kg • Dimensions (HxWxL) : 510 x 340 x 675 mm
