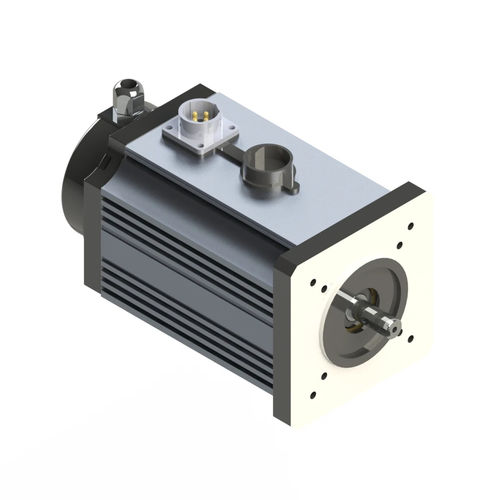

Direct current motor M090-S
BLDCIP54permanent magnet

direct current motor
direct current motor
Add to favorites
Compare this product


Characteristics

AC/DC
direct current
Type
BLDC
Protection class
IP54
Configuration
permanent magnet, TENV
Other characteristics
variable-speed, high-efficiency, high-torque
Power

500 W
(0.68 hp)

Rotational speed

3,000 rpm
(18,849.56 rad.min-1)

Diameter

100 mm
(3.94 in)

Description

300 volt Brushless DC motor (220v AC) Brushless DC motors meet variable speed requirements (adjusted and capped via controller), are easy to change direction and have a higher starting torque than AC motors. EMP's range of DC motors are highly efficient, generally operating at above 90% efficiency. They are also smaller than their AC equivalents and can operate at very low speeds if required. IMPORTANT: All BLDC motors require a suitable controller to perform the electronic commutation function in order to operate. These controllers also provide the capability to: -Control and cap the speed -Reverse direction of the motor -Set acceleration and deceleration requirements -Assign specific control parameters via custom set-up of your controller
