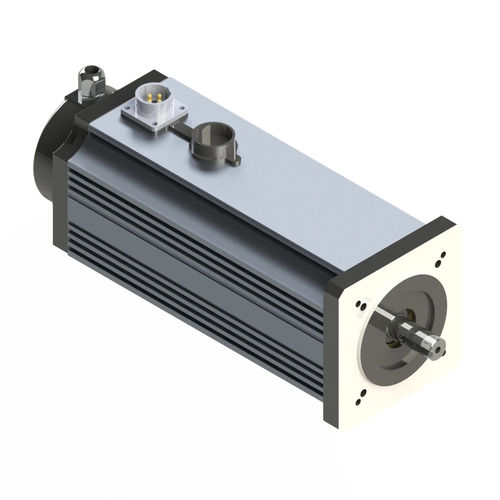

DC motor M090-L
brushlesspermanent magnetTENV

DC motor
DC motor
Add to favorites
Compare this product


Characteristics

AC/DC
DC
Type
brushless
Configuration
permanent magnet, TENV
Other characteristics
variable-speed, high-efficiency, high-torque
Power

1,000 W
(1.36 hp)

Rotational speed

3,000 rpm
(18,849.56 rad.min-1)

Diameter

100 mm
(3.94 in)

Description

300 volt DC Brushless motor (220v AC) Brushless DC motors meet variable speed requirements (adjusted and capped via controller), are easy to change direction and have a higher starting torque than AC motors. EMP's range of DC motors are highly efficient, generally operating at above 90% efficiency. They are also smaller than their AC equivalents and can operate at very low speeds if required. IMPORTANT: All BLDC motors require a suitable controller to perform the electronic commutation function in order to operate. These controllers also provide the capability to: -Control and cap the speed -Reverse direction of the motor -Set acceleration and deceleration requirements -Assign specific control parameters via custom set-up of your controller
