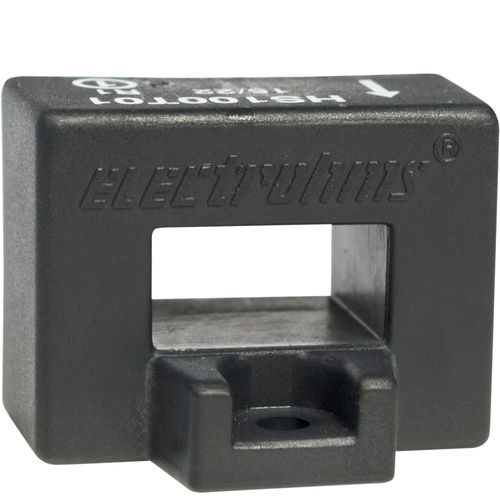

Open-loop Hall effect current sensor HS series

panel-mountACDC

Hall Effect Current Sensor, Open loop transducers measure DC, AC and complex current wave forms while providing galvanic isolation. The advantages include low cost, small size, lightweight and low power consumption and are especially advantageous when measuring high (> 300 A) currents KEY FEATURES •DC, AC and pulsated current measurements with Galvanic isolation •50 to 600A open loop Hall effect current sensor with Rectangular opening •Extended measuring range in the same package •Dual supply operated ±12 to ±15V •Low power consumption •Good accuracy at nominal currents •Panel mounting RELATED APPLICATION •Welding machines •Industrial inverter / UPS •Battery energy management SPECIFICATION Product NoHS050T01 Ipn (A)50 IpMax (A)±150 Sup. Voltage(V) ±15 Iout/Vout @Ipn ± 4.0 V Bandwidth-3dB(kHz)DC - 50 Accuracy % ±1.0 Secondary TerminationConnector Header Mounting TypePanel
