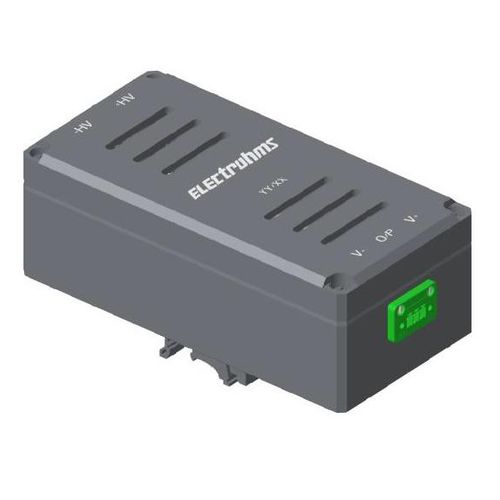

Resistance voltage sensor VHASM-CB11 seriesgalvanically-isolatedDCAC
Add to favorites
Compare this product
Characteristics
- Technology
- resistance
- Electrical characteristics
- galvanically-isolated, DC, AC
- Voltage
750 V, 1,000 V
Description
An integrated primary resistor networks determines the nominal measuring voltage of the sensor. The advantages of VHASM750T01 is Compact design, Excellent accuracy (offset, sensitivity, linearity), Good response time, Low temperature drift.
KEY FEATURES
•DC, AC and pulsated voltage measurements with Galvanic isolation.
•Built-in input resistors.
•Current output.
RELATED APPLICATION
•Central/Off Grid Inverters.
•Auxilary converters in Railways
•Traction Converters
•EV
SPECIFICATION
Product NoVHASM750T02-CB11
Supply Voltage±15 V
Output @Vpn 20 mA
Bandwidth -3dB--
Accuracy %±1.0
Secondary TerminationConnector Header
Mounting TypePanel
Nominal Input750 Vrms
Diele. Strength4.1 kVrms
