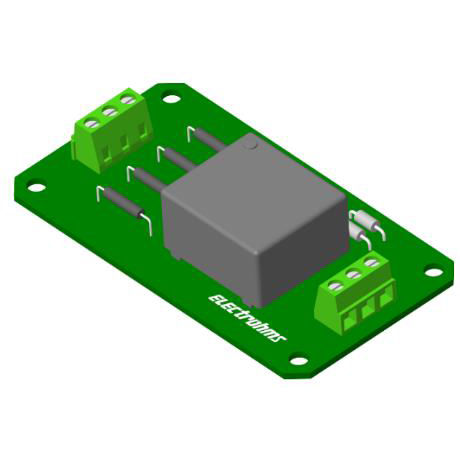

Galvanically-isolated voltage sensor VHASM150T01

galvanically-isolated voltage sensor
galvanically-isolated voltage sensor
Add to favorites
Compare this product


Electrical characteristics
galvanically-isolated, DC, AC

150 V


An integrated primary resistor networks determines the nominal measuring voltage of the sensor. The advantages of VHASM150T01 is Compact design, Excellent accuracy (offset, sensitivity, linearity), Good response time, Low temperature drift. KEY FEATURES •DC, AC and pulsated voltage measurements with Galvanic isolation. •Built-in input resistors. •Current output. RELATED APPLICATION •Central/Off Grid Inverters. •Auxilary converters in Railways •Traction Converters •EV Charger SPECIFICATION Product NoVHASM150T01 Supply Voltage±15 V Output @Vpn 25 mA Bandwidth -3dB-- Accuracy %±1.0 Secondary TerminationTab Terminals Mounting TypePanel Nominal Input150 Vrms Diele. Strength4.1 kVrms


No catalogs are available for this product.

See all of Electrohms‘s catalogs
