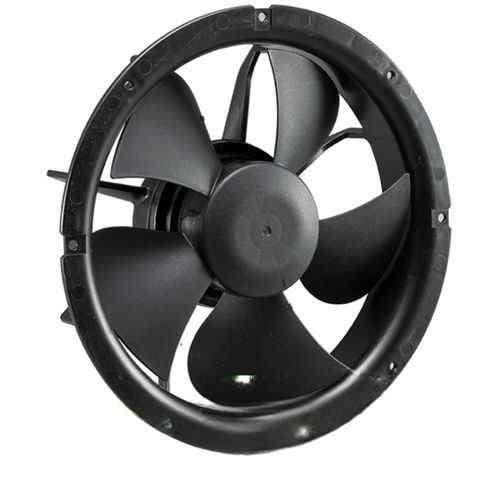

ATEX fan EC series

axialventilationEC motor

Overview
Mechanical revolving-blade tube axial fans available in multiple sizes and configurations. EC electronic motors and ATEX certification allow use in gas-hazard environments where indicated.

ATEX Certificate Issued According to :
EN IEC 60079-0 : 2018
EN IEC 60079-7 : 2015/A1:2018
EN IEC 60079-0 : 2017 Edition: 7.0
EN IEC 60079-7 : 2017 Edition: 5.1
Ex II 3G Ex ec IIC Gc.

Specification

• EC6025 | 60 x 60 x 25 / 2.36 x 2.36 x 1.00 | Max Airflow 0.55 m3/min / 19.4 CFM | Electronically protected; Universal Voltage
• EC8025 | 80 x 80 x 25 / 3.15 x 3.15 x 1.00 | Max Airflow 0.9 m3/min / 31 CFM | Electronically protected; Universal Voltage
• EC9225 | 92 x 92 x 25 / 3.62 x 3.62 x 1.00 | Max Airflow 1.1 m3/min / 39 CFM | Electronically protected; Universal Voltage
• EC9238 | 92 x 92 x 38 / 3.62 x 3.62 x 1.50 | Max Airflow 1.4 m3/min / 50 CFM | Electronically protected; Universal Voltage
• EC1238 | 120 x 120 x 38 / 4.70 x 4.70 x 1.50 | Max Airflow 3.0 m3/min / 106 CFM | Electronically protected; Universal Voltage
• EC1551 | 172 x 150 x 51 / 6.70 x 5.90 x 2.00 | Max Airflow 6.2 m3/min / 220 CFM | Electronically protected; Universal Voltage
• EC2578 | Ø250 x 78.5 / Ø9.84 x 3.1 | Max Airflow 14 m3/min / 495 CFM | Electronically protected
• EC2578M | Ø250 x 78.5 / Ø9.84 x 3.1 | Max Airflow 13 m3/min / 460 CFM | Electronically protected; Metal blades
• EC2589 | Ø254 × 89 / Ø10 x 3.5 | Max Airflow 25.7 m3/min / 910 CFM | Electronically protected

• We reserve the right to change the data without further notice.
• Data performance subjected to 10% tolerance.

Technical specifications

• Product family: EC ATEX Tube Axial Fans
• ATEX certification: Ex II 3G Ex ec IIC Gc
• Standards referenced: EN IEC 60079-0 (2018 and 2017 editions), EN IEC 60079-7 (2015/A1:2018 and 2017 edition)
• Available models and key dimensions/performance: EC6025 (60×60×25 mm, 0.55 m3/min / 19.4 CFM), EC8025 (80×80×25 mm, 0.9 m3/min / 31 CFM), EC9225 (92×92×25 mm, 1.1 m3/min / 39 CFM), EC9238 (92×92×38 mm, 1.4 m3/min / 50 CFM), EC1238 (120×120×38 mm, 3.0 m3/min / 106 CFM), EC1551 (172×150×51 mm, 6.2 m3/min / 220 CFM), EC2578 / EC2578M (Ø250×78.5 mm, 13–14 m3/min / 460–495 CFM), EC2589 (Ø254×89 mm, 25.7 m3/min / 910 CFM)
• Protection/features: Electronically protected; Universal voltage for most models; metal blades option on EC2578M
• Performance tolerance: ±10%
